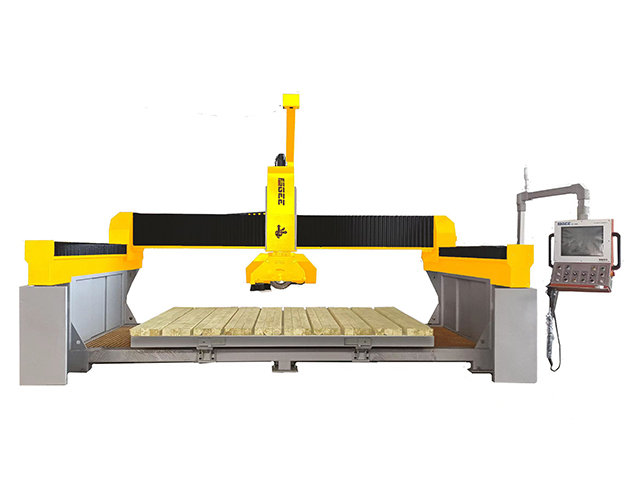

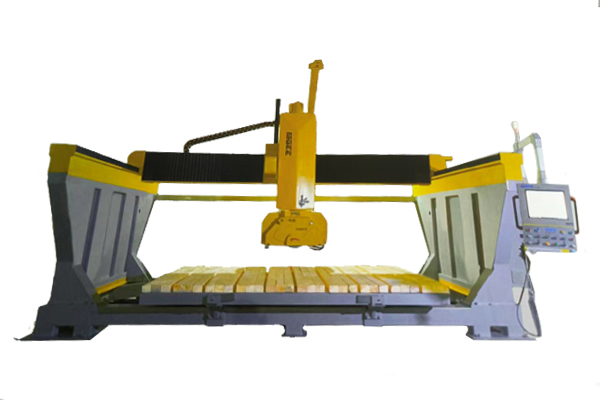

High-Precision 700 Model 5-Axis CNC for Multi-Functional Stone Processing
Automated CNC for arc lines, special shapes, and complex profiling
The 700 Model Five-Axis CNC Bridge Saw is an integrated multi-functional cutting system, engineered for both standard specifications and a wide range of special-shape processing. It handles applications such as arc lines, straight lines, villa window frames, garden arc boards, and parquet patterns with precision and efficiency.
With fast speed, low processing cost, high cutting accuracy, and intelligent operation, the 700 model is suitable for diverse stone materials including marble, granite, quartz, and sintered stone. It has become the preferred equipment for stone enterprises engaged in engineering projects, landscape construction, and decorative stone processing worldwide.
Explore QZGEE 700 Five-Axis CNC — Quick Navigation
To help you find details fast, click any tile to jump to applications, project cases, catalog, features, customization, factory process, or FAQs for the 700 model.

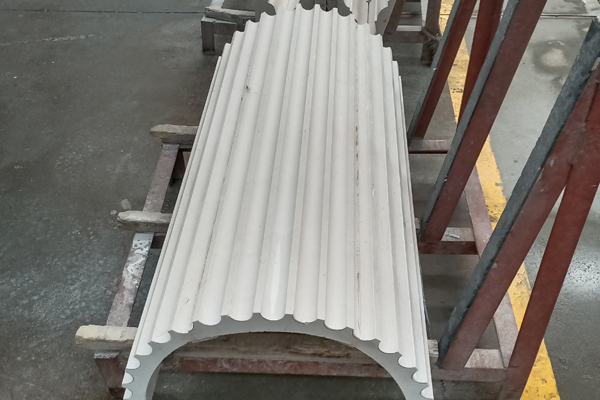

Applications For QZGEE 700 Five-Axis CNC

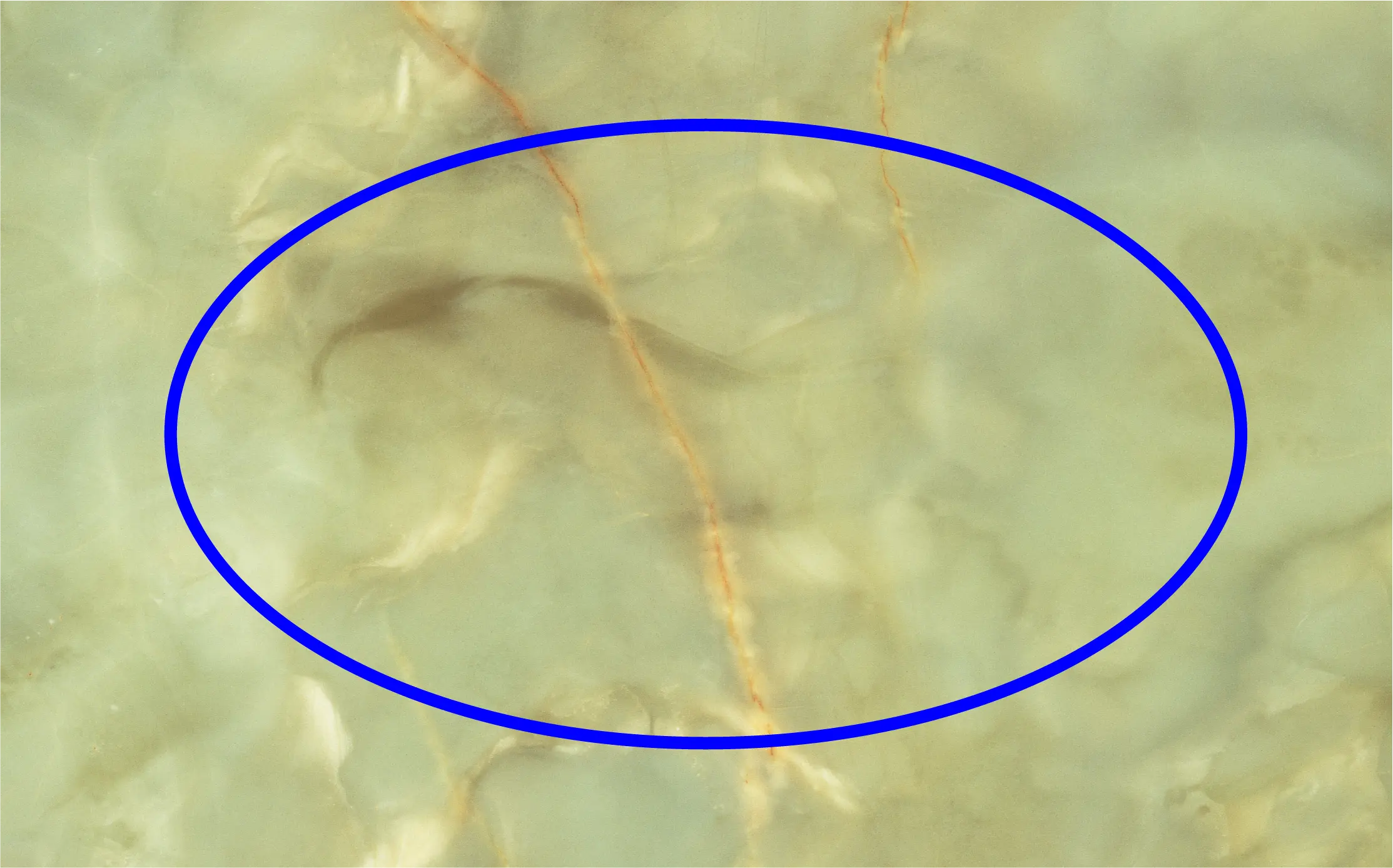

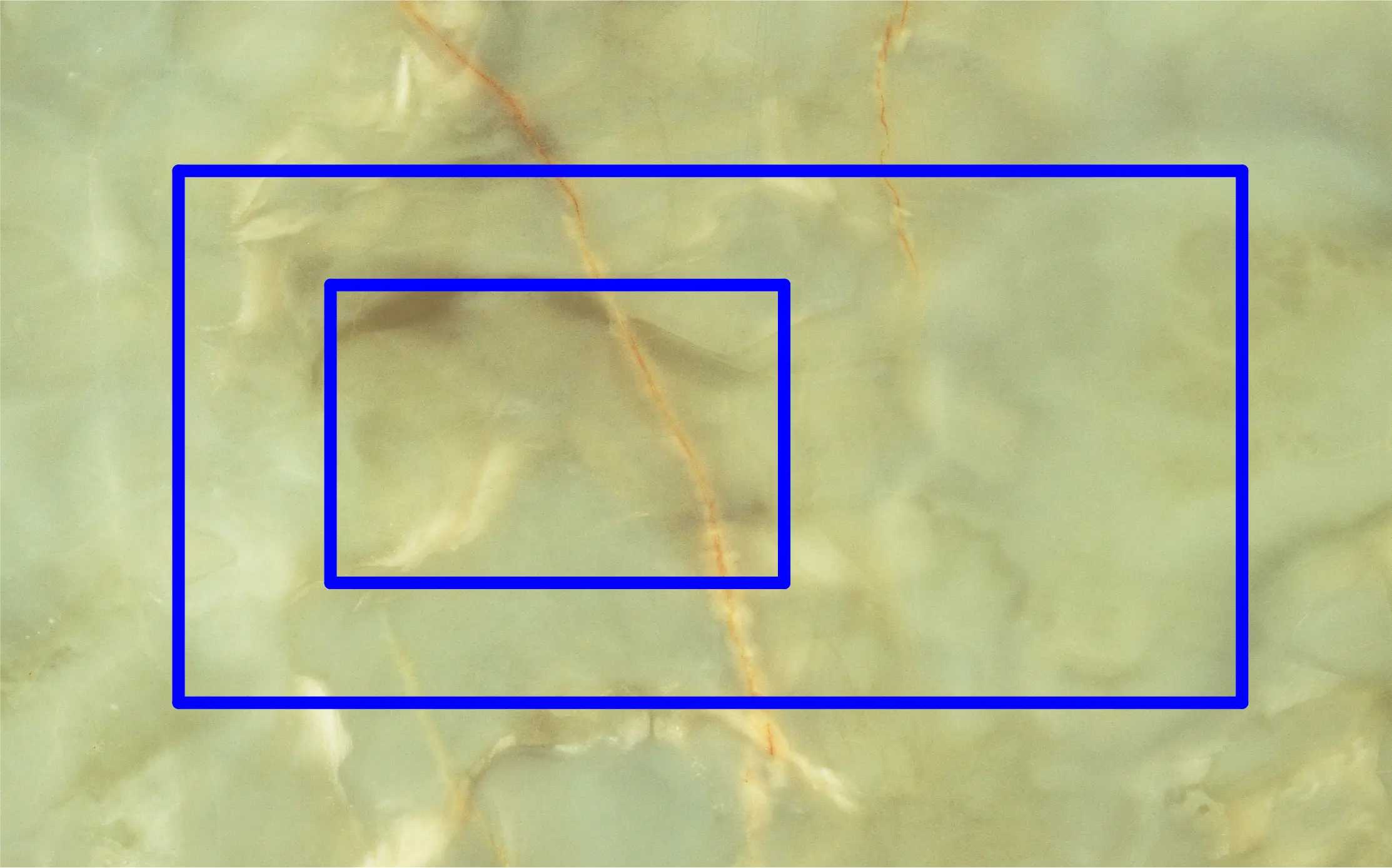

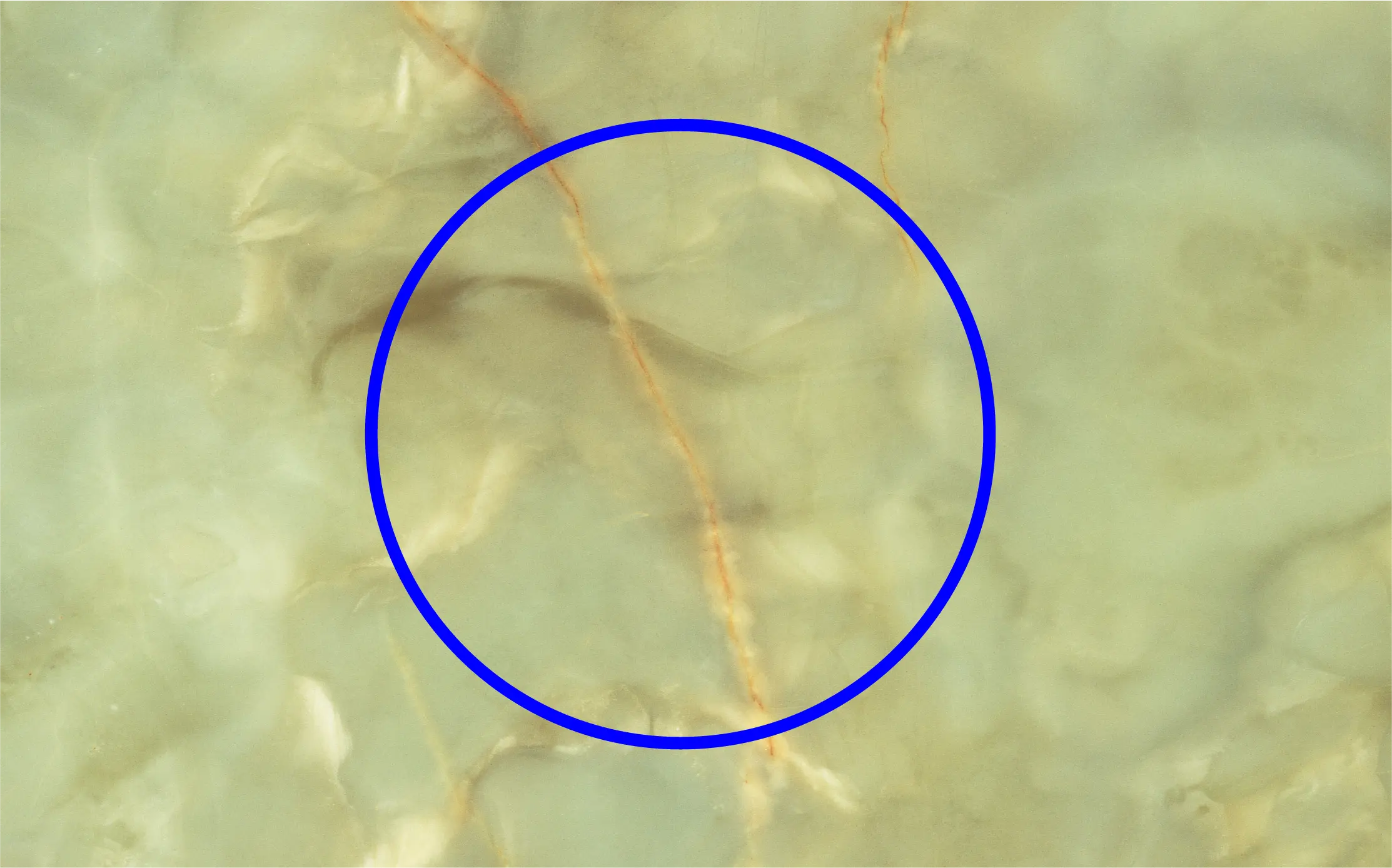

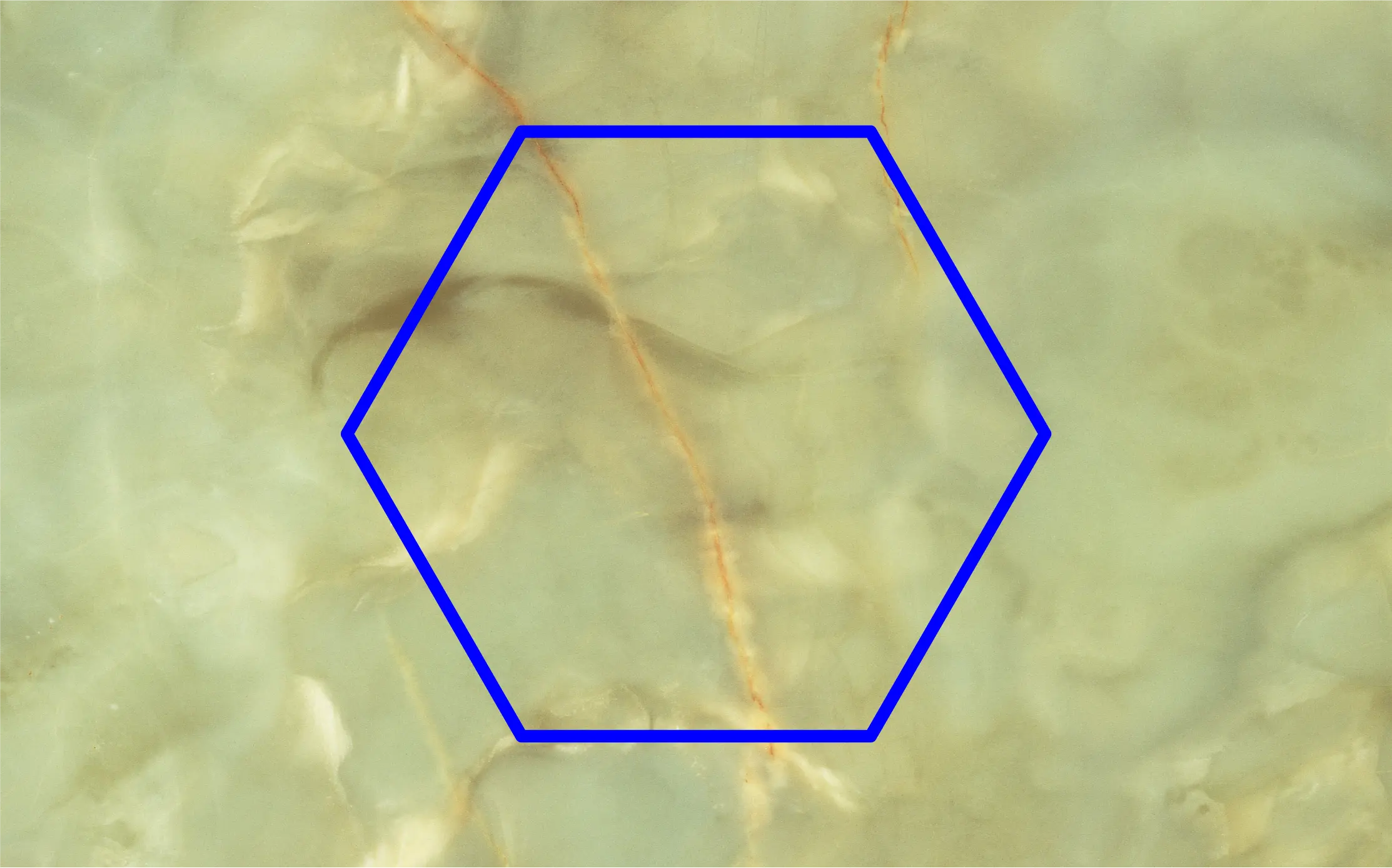

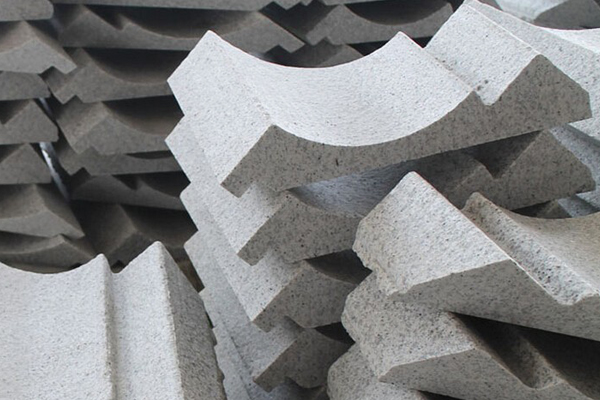

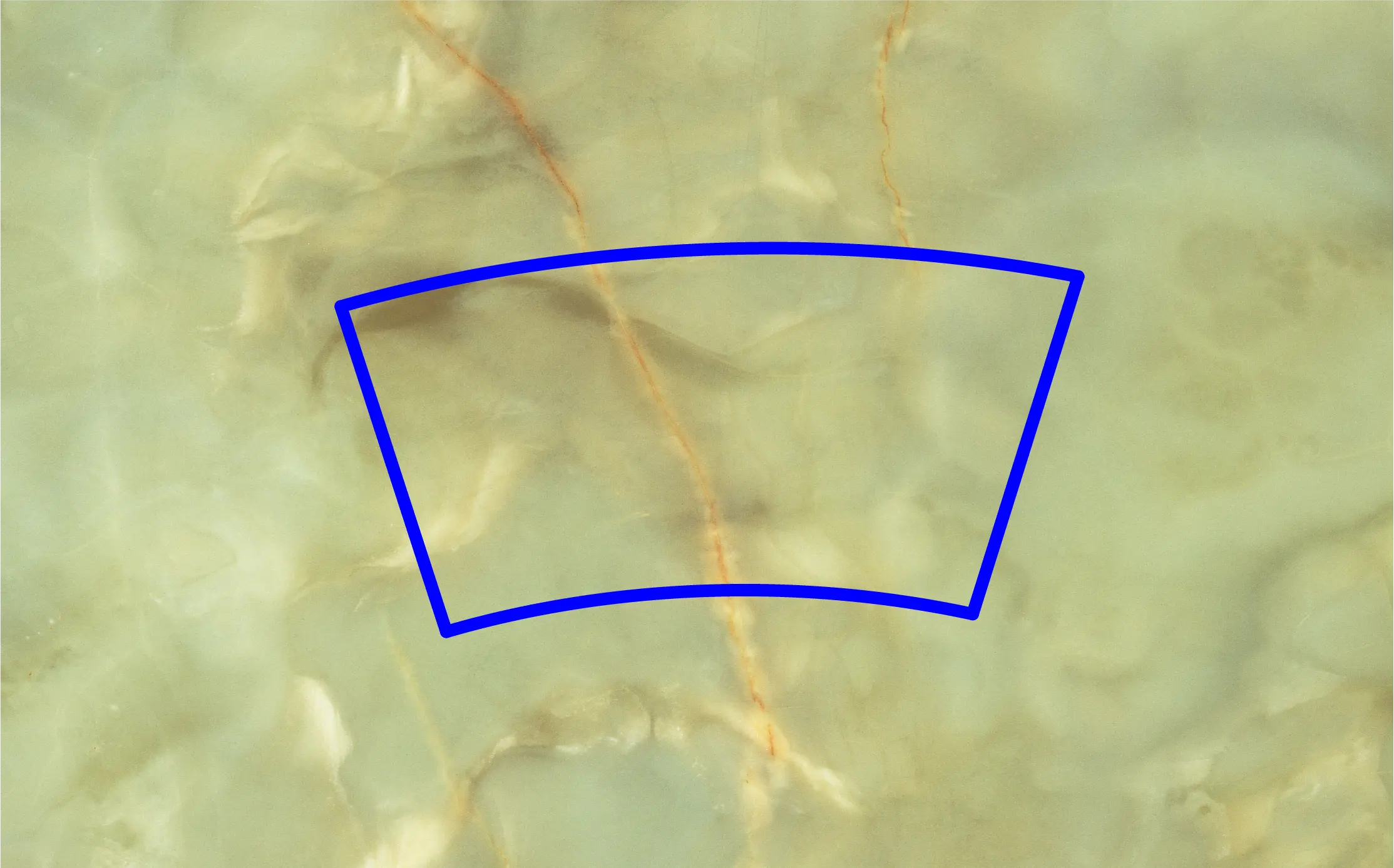

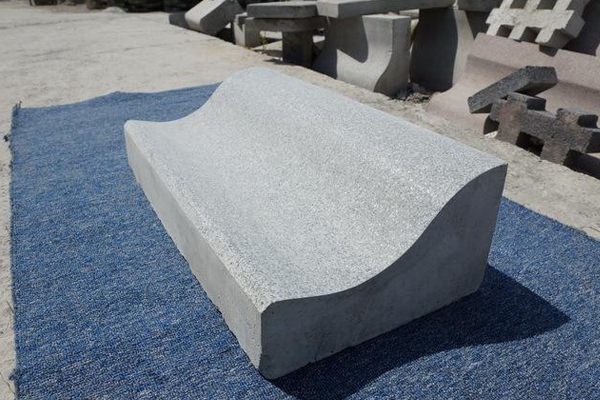

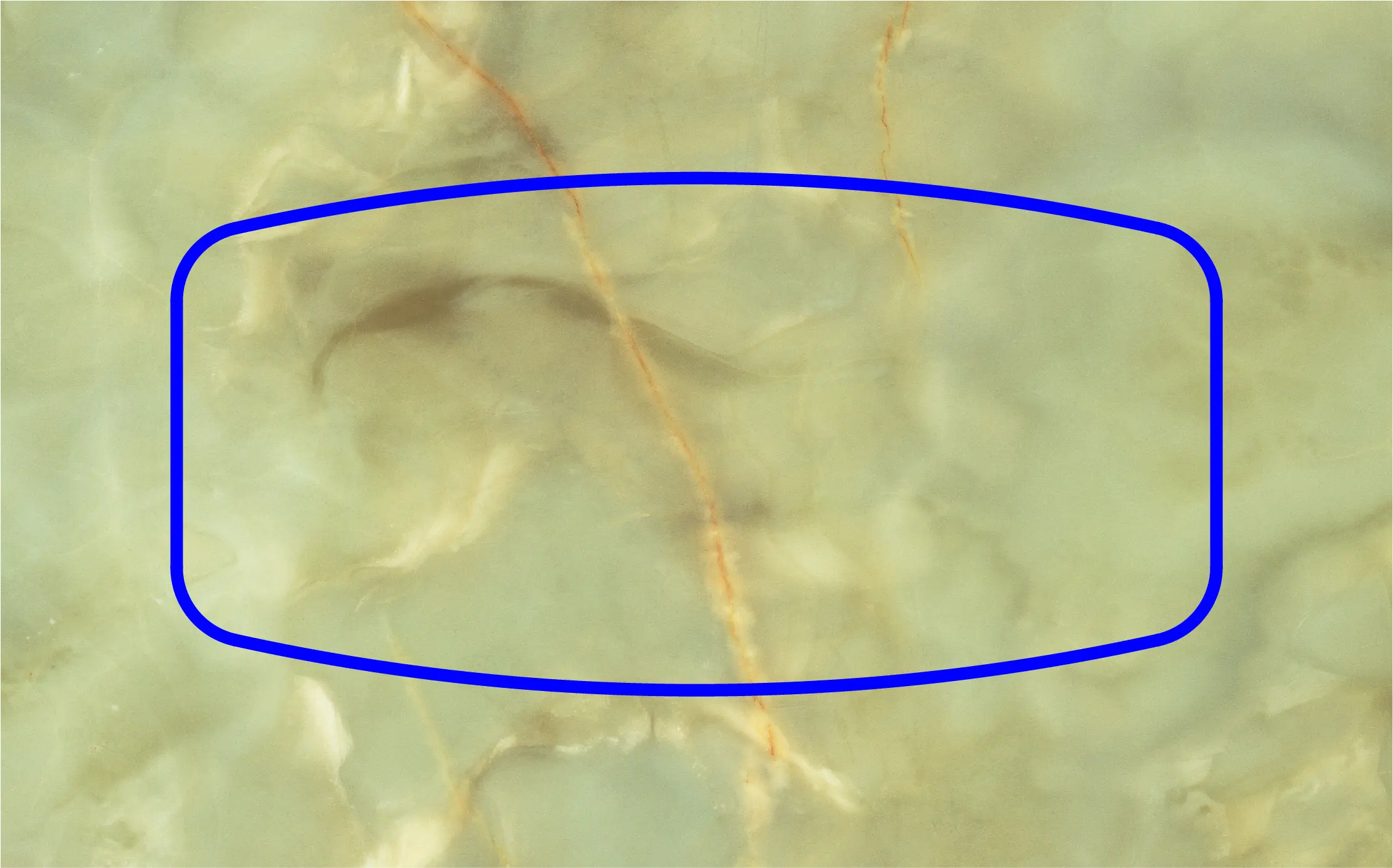

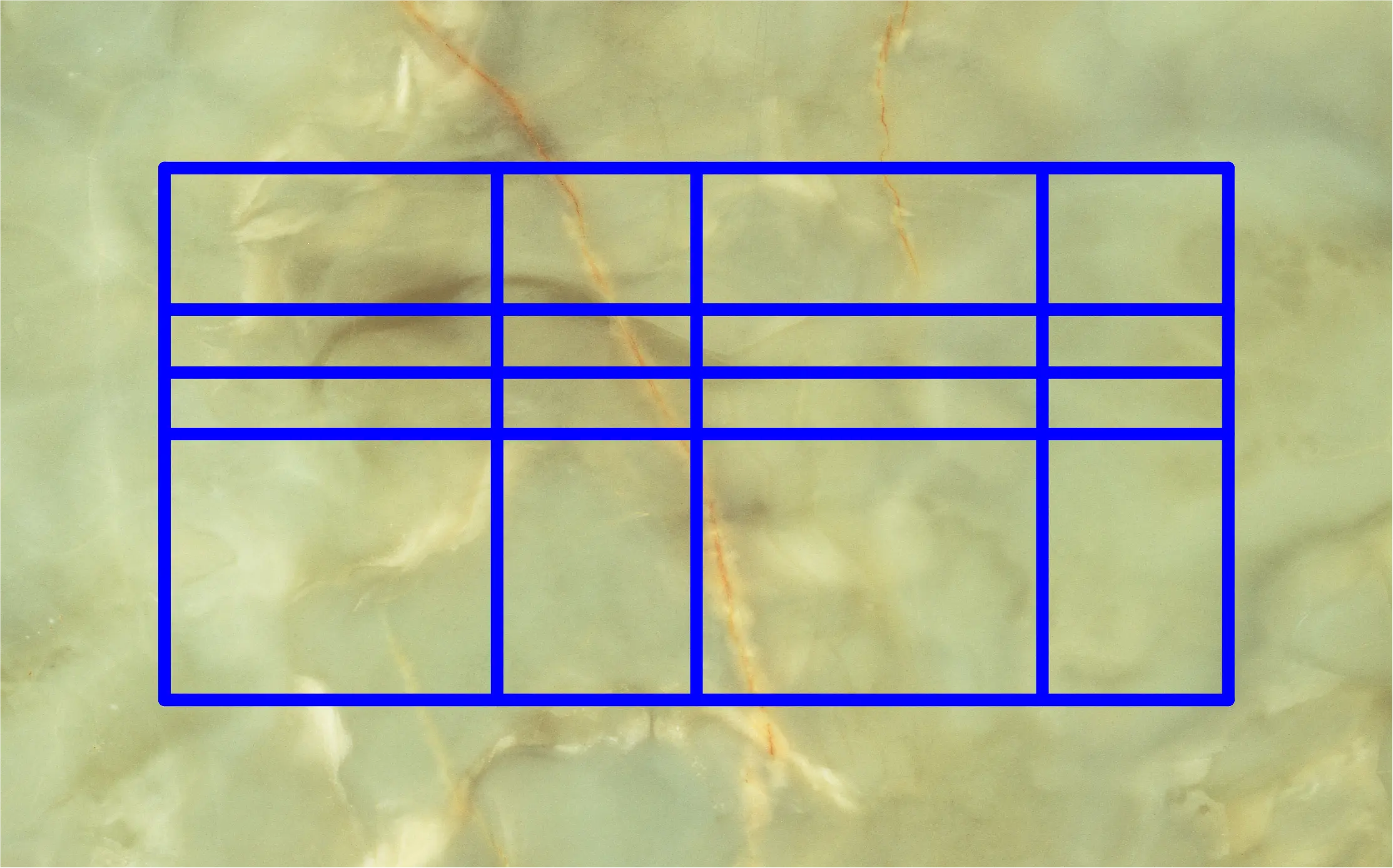

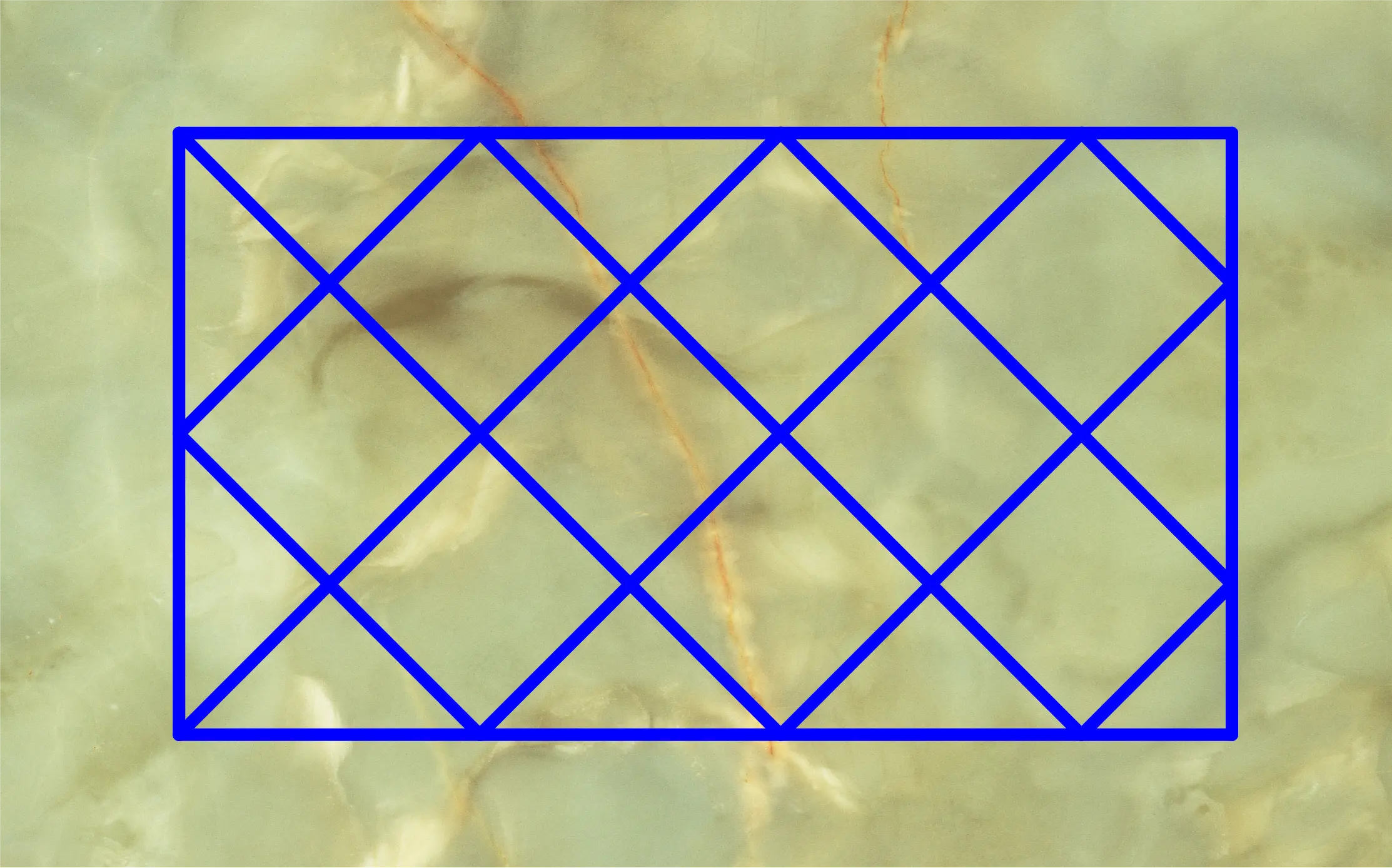

Built for special shape manufacturing, the 700 model is ideal for producing customized profiles, irregular components, precision cut-outs, grooves, and complex 3D surfaces in a single setup. Upload your CAD drawings and we’ll preload one-touch presets for efficient processing.

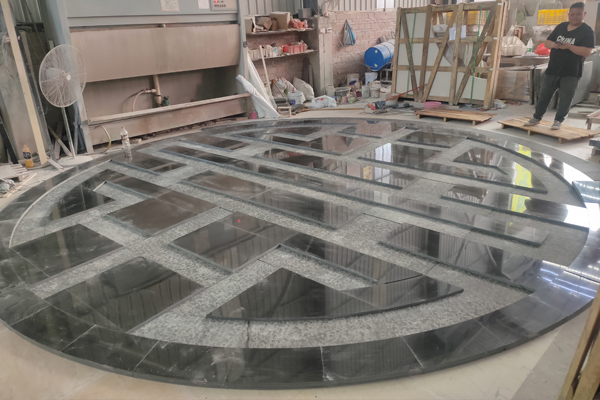

Product Case — QZGEE 700 Five-Axis CNC Projects

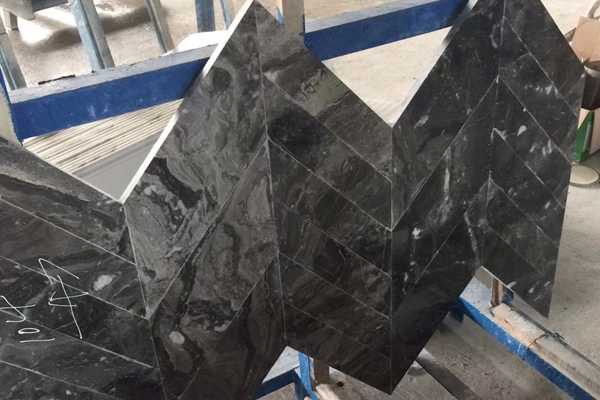

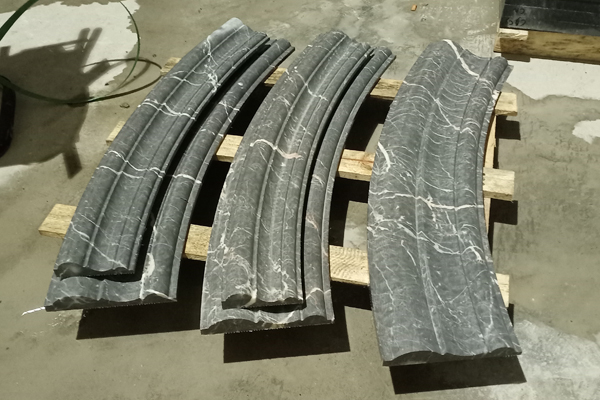

Advanced CNC Projects for Unique Shape Fabrication
Explore selected special shape projects completed with the 700 model. Each case demonstrates one-touch workflows, flip-table setups, and verified results (accuracy to ±0.05 mm) with optimized tools, feeds, and cycle times. Custom processing recipes and OEM training are also available.
| Project | Parameter |
|---|---|
| The machine stroke | |
| X axis stroke (mm) | 3400 |
| Y axis stroke (mm) | 2000 |
| Z axis stroke (mm) | 500 |
| A axis stroke (°) | 0~90 (auto) |
| C axis stroke (°) | ±365 |
| Cutting thickness (mm) | 0~210 |
| Fast running speed (m/min) | 25 |
| Spindle power (KW) | 22-25 |
| Spindle speed (rpm) | 0~3500 |
| Saw blade diameter (mm) | 300~700 |
| General configuration | |
| Platform size (mm) | 3400×2000 |
| Flip Angle (°) | 0~85 |
| The total power (kw) | ≈33 |
| The total weight (kg) | ≈7500 |
| Equipment dimensions (mm) | 6000×3300×3850 |
| Camera function | √ |
| Functional configuration | |
| The knife function | Optional |
| Thickness function | Optional |
| Chuck function | Optional |
| Cutter function | Optional |

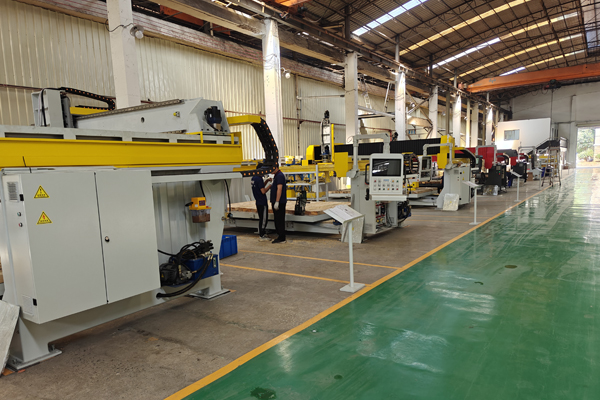

QZGEE 700 Five-Axis CNC Catalog
Download the latest catalog for the 700 model, including technical specifications, worktable layouts, spindle power options, tool magazines, utilities, installation checklist, safety compliance, and sample workflows. Share your project needs, and we’ll configure a tailored solution for your factory.
Key Features Of QZGEE 700 Five-Axis CNC
The 700 model combines one-touch workflows, a flip-top worktable, and 5-axis motion control to deliver precision, flexibility, and ±0.05 mm repeatability for special shape manufacturing.
5-Axis Precision & Power
Simultaneous XYZ+A+C motion handles complex geometries, undercuts, and irregular profiles in a single setup. Equipped with 11–18 kW spindle and tuned toolpaths, it delivers clean finishes with ±0.03–0.05 mm repeatability across diverse materials.
Vision Alignment
A high-resolution camera system maps templates or workpieces, correcting offsets automatically. It ensures accurate alignment for custom shapes, curves, and patterns, reducing trial cuts and enabling jobs to start quickly.
One-Touch Recipes
Preloaded machining programs cover special profiles, cut-outs, grooves, and custom components. Operators simply load CAD files, select recipes, and the machine executes tool changes, feeds, and coolant settings automatically.
Flip-Top Worktable
The tilting flip-top table improves safety and efficiency when handling large or irregular workpieces. It minimizes operator strain, reduces re-clamping errors, and shortens total cycle times.
Auto Tool Setting
A contact probe measures tool length, diameter, and runout automatically. It updates offsets in real time, ensuring consistent accuracy for grooves, edges, and drilled holes during extended production runs.
Vacuum Fixturing Zones
High-flow vacuum with modular cups secures irregular or mixed-size parts. Leak detection protects workpieces, while switchable zones enable flexible setups for different jobs and batch sizes.
Wet Cutting & Filtration Ready
Coolant jets and splash containment extend tool life and surface quality while controlling dust. The system supports closed-loop filtration and suppression options, ensuring cleaner operations and compliance with factory safety standards.
CE-Ready Safety & Reliability
Certified to international standards with dual emergency stops, interlocks, and PLC safety controls. Predictive alerts, remote diagnostics, and robust components maximize uptime and ensure reliable performance worldwide.

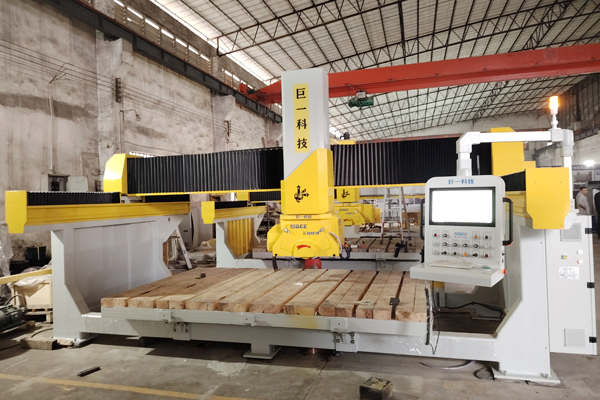

Popular Custom Options — QZGEE 700 5-Axis CNC Bridge Saw
QZGEE offers OEM & ODM customization for the 700 model. From axis control to spindle power and automation functions, every configuration can be tailored to meet the needs of stone cutting, profiling, and complex shape processing.
| Option Pack | Worktable (mm) | Spindle Power / Speed | Saw Blade Ø (mm) | Platform Flip | Utilities & Speed | Dimensions (mm) | Extras / Notes |
|---|---|---|---|---|---|---|---|
| Starter | 3400 × 2000 | 22 kW / 0–3500 rpm | 300–500 | 0–45° | 25 m/min, water cooling | 6000 × 3300 × 3850 | Entry-level cutting |
| Performance | 3400 × 2000 | 25 kW / 0–3500 rpm | 300–700 | 0–85° | 25 m/min, smart cooling | 6000 × 3300 × 3850 | High precision, fast throughput |
| High-Rigidity | 3400 × 2000 | 25 kW / 0–3500 rpm | 300–700 | 0–85° | Reinforced frame, stable | 6000 × 3300 × 3850 | For heavy granite & quartz |
| Automation-Ready | 3400 × 2000 | 22–25 kW / 0–3500 rpm | 300–700 | 0–85° | CAD/CAM + tool libraries | 6000 × 3300 × 3850 | One-touch automation |
| Custom Pack | As required | 22–25 kW / 0–3500 rpm | 300–700 | 0–85° | Optional automation & IoT | As required | Camera, knife, thickness, chuck, cutter (all optional) |
Sizes
Worktable & Layout Custom Options
Choose the worktable that matches your production needs. The 700 CNC Five-Axis Machine is available in three standard formats:
3300×2000 mm、3600×2100 mm、3200×1900 mm
Each supports flip-top loading, zoned vacuum, and closed-loop water systems.
Custom widths and layouts are available on request to fit special shape manufacturing workflows.
Why Choose QZGEE 700
Built for modern manufacturing—precision, uptime, and easy onboarding—with one-touch cycles and flip-top efficiency.
Verified Accuracy
Rigid frame, linear guides, and calibrated probing keep custom profiles and complex edges within ±0.03–0.05 mm. Thermal-stable design preserves tolerances even during long production runs.
Faster Setups
Vision alignment and one-touch programs auto-handle offsets, tools, feeds, and coolant. Operators simply load CAD data, choose a recipe, and start—delivering repeatable jobs in minutes with less rework.
Flip-Top Ergonomics
The flip worktable enables efficient backside operations without re-clamping or re-zeroing. It ensures safer handling of irregular parts, cleaner datum control, and shorter cycle times while reducing operator fatigue.
Stable Fixturing
High-flow, zoned vacuum with modular pods secures irregular components and mixed-size parts. Leak detection safeguards workpieces, and quick reconfiguration supports frequent job changes.
CE-Grade Safety
Full guarding, interlocks, and dual emergency stops managed by a PLC ensure global compliance. Delivered with CE-ready documentation and electrical protection, supporting reliable and safe operation worldwide.

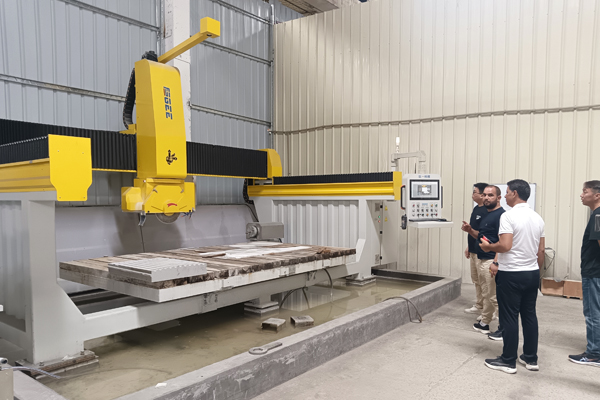

Service & Training
On-site commissioning, program onboarding, and remote diagnostics keep uptime high. OEM customization, spare parts, and English manuals ensure the machine integrates smoothly into your workflow.
Your Reliable 5-Axis CNC Supplier in China
Innovation · Precision · Global Support
QZGEE specializes in custom 5-axis CNC solutions designed for special-shape manufacturing. The 700 Model integrates one-touch workflows, flip-top loading, and high-accuracy kinematics to deliver complex cutting, profiling, and engraving with ease. From prototypes to batch production, it ensures repeatability within ±0.05 mm.
We provide OEM/ODM customization, CE certification, multilingual manuals, remote diagnostics, and worldwide logistics, helping manufacturers scale operations with confidence while maintaining consistent uptime.

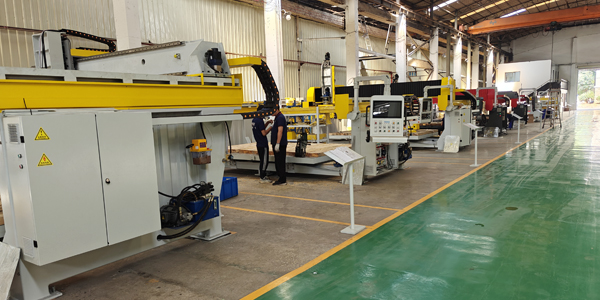

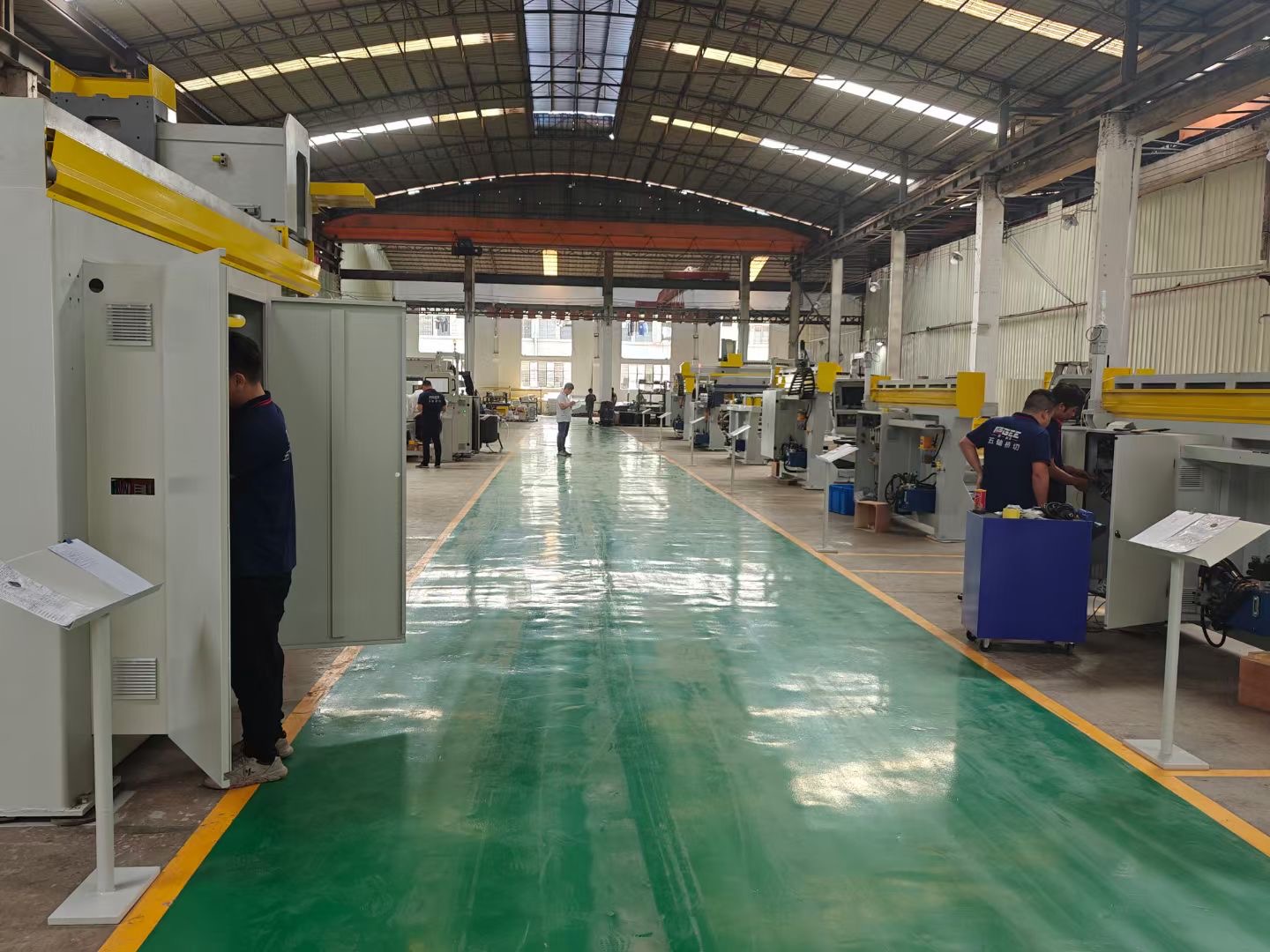

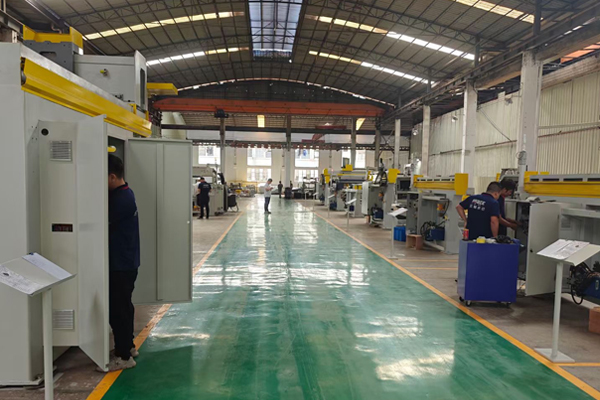

QZGEE Factory — Professional CNC Machine Manufacturer in China
From Machining to Assembly, Calibration & Final Testing
Every 700 Model CNC is built entirely in-house. Our production process covers frame machining, spindle testing, and full electrical calibration. Each axis is verified through laser alignment, and vacuum circuits undergo balance and leak-down checks. The integrated vision system ensures precision on reference templates.
Before delivery, each machine runs a complete FAT (Factory Acceptance Test) with sample jobs—recording dimensions, surface finish, and cycle times. Every shipment includes a starter tool kit, installation checklist, CE/DoC documentation, and training support, ensuring the machine arrives production-ready for rapid commissioning and higher ROI.
FAQ – QZGEE 700 Model 5-Axis CNC
The 700 CNC is designed for special-shape manufacturing, such as irregular profiles, complex curves, sink/hob cut-outs, and customized component processing. It is widely used in industries requiring precision shaping and finishing.
Each 700 CNC is laser-calibrated and tested on real workpieces. It achieves repeatability within ±0.03–0.05 mm, ensuring consistent accuracy even for intricate details.
Yes. The machine supports a wide range of materials, including quartz composites, engineered stone, ceramics, and industrial composites, making it suitable for both decorative and technical applications.
Absolutely. We offer customizable worktable sizes, spindle power, tool magazines, vacuum systems, and automation options. Branding, logos, and color customization are also available for global buyers.
Each shipment includes a starter tool kit, installation checklist, and CE documentation. Remote support is provided, and on-site commissioning & training can be arranged for international customers.
We provide remote diagnostics, spare parts supply, OEM documentation, and English manuals. Long-term service contracts and technical upgrades are available to keep your machine running at peak performance.
