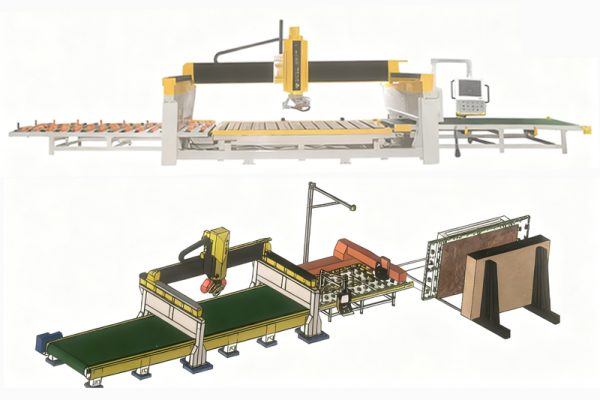

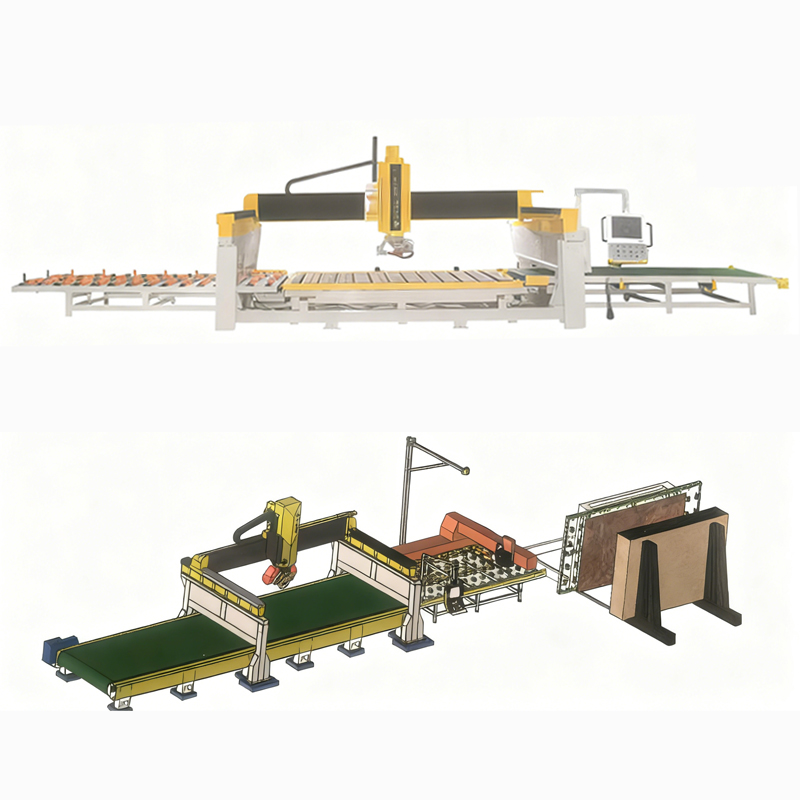

QX3400-5X Automated Stone Processing Line
End-to-End Intelligent Fabrication from Loading to Output
The QX3400-5X is engineered for high-accuracy, continuous-cycle stone manufacturing, delivering stable five-axis motion and automated QR-guided slab identification. Designed with production optimization in mind, it allows workshops to cut diverse geometries with minimal manual intervention while ensuring consistent edge quality.
Built on QZGEE’s intelligent control architecture, the system integrates material recognition, cutting-path optimization, and conveyor-line transitions. This enables processors to maintain stable throughput, reduce labor intensity, and achieve fast switching between different slab formats on a single production line.
Explore QX3400-5X Details
Navigate through our comprehensive resource sections to discover how this automated production line can transform your stone fabrication workflow
QX3400-5X Application Scope
The QX3400-5X operates across diverse stone-fabrication environments where precision, automation, and workflow continuity are essential. It is suitable for high-volume slab processing lines, architectural stone production centers, countertop fabrication workshops, and engineered-stone shaping tasks that require multi-angle, multi-axis movement with stable cutting performance.
Application Cases in Automated Slab Processing
Automated Precision in Large-Scale Stone Fabrication
Witness the seamless operation of the QX3400-5X production line as it transforms raw slabs into finished components. Our gallery demonstrates the system’s capability to maintain perfect accuracy across diverse cutting patterns including ovals, hexagons, and specialized stove panels, all processed through its fully automated workflow from loading to final output.
QX3400-5X Technical Catalog
Download our complete technical portfolio featuring detailed specifications, automation integration guidelines, and performance data for the entire production line system to evaluate its compatibility with your manufacturing requirements.
Engineering Excellence of QX3400-5X
The QX3400-5X integrates advanced automation technology with precision cutting capabilities to create a comprehensive stone processing solution that maximizes productivity while minimizing operational costs.
Smart Labeling
The system reads slab QR codes with high accuracy, enabling automated material identification before cutting. This feature eliminates manual input errors, speeds up workflow transitions, and ensures each board follows the correct cutting plan for consistent production quality.
Five-Axis Cutting
Five-axis linkage allows multi-angle shaping, contour cutting, and precision slotting on complex geometries. The synchronized motion ensures smooth trajectories, reduced vibration, and reliable cutting results across marble, granite, quartz, and sintered stone.
Conveyor Transfer
Integrated conveyor modules provide continuous slab movement from loading to cutting, minimizing manual handling. The design improves workplace safety, speeds up production rhythm, and ensures each plate reaches the cutting zone with stable alignment.
Stability Control
A reinforced bridge and balanced spindle layout maintain structural rigidity during high-speed motion. This reduces blade deviation, enhances long-run accuracy, and ensures consistent output when processing dense or brittle materials.
High-Speed Cutting
Optimized motor torque and spindle rotation deliver efficient cutting performance, enabling fast penetration and clean edges. The system maintains stable feed rates even on thick slabs, improving overall throughput without sacrificing precision.
Digital Calibration
The machine uses digital calibration and sensor-based tracking for accurate tool positioning. This technology ensures each movement follows the programmed path precisely, achieving repeatable performance in demanding production cycles.
Flexible Geometry
The system supports diverse shape requirements including elliptic, circular, hexagonal, and custom profiles. This versatility allows fabricators to handle both mass-production tasks and specialized project orders with equal reliability.
Reduced Labor
Automated transitions—labeling, positioning, and finish cutting—significantly reduce manual workload. This improves operational safety, lowers staffing demand, and ensures each cutting cycle is completed with minimal intervention and maximum efficiency.
Device Parameter Configuration Table
The following are the standard technical specifications of the core processing unit in the QX3400-5X intelligent production line, showcasing the equipment’s precision machining capabilities and automation configuration. All parameters are standard configurations and can be customized to meet specific production needs.
| Parameter Group | Item | Specification |
|---|---|---|
| Stroke Configuration | X-Axis Travel (mm) | 3400 |
| Y-Axis Travel (mm) | 2000 | |
| Z-Axis Travel (mm) | 350 | |
| A-Axis Travel (°) | 0-90 (Auto) | |
| C-Axis Travel (°) | ±365 | |
| Processing Capacity | Max. Cutting Thickness (mm) | 80 |
| Rapid Traverse Speed (m/min) | 25 | |
| Spindle Power (KW) | 18.5-22 | |
| Spindle Speed (rpm) | 0-3500 | |
| Saw Blade Diameter (mm) | 300-450 | |
| System Configuration | Platform Size (mm) | 3400×2000 |
| Transfer Method | Roller Type/Belt Type | |
| Total Power (KW) | ≈29 | |
| Total Weight (kg) | ≈6500 | |
| Equipment Dimensions (mm) | 6000×3300×3200 | |
| Standard Features | Camera Function (Vision System) | ✓ |
| Optional Features | Tool Setting Function (Tool Diameter Measurement) | Optional |
| Thickness Measurement Function (Slab Thickness Measurement) | Optional | |
| Vacuum Chuck Function (Slab Separation System) | Optional | |
| Milling Function (Milling & Drilling System) | Optional | |
| Marking Function (Auto Labeling) | Optional |
Sizes
Machine Dimensions and Processing Envelope
The QX3400-5X offers a broad motion stroke to support varied slab sizes, enabling large-format, multi-angle, and deep-cut processing without compromising precision. Its layout accommodates premium stones such as marble, granite, quartz, and sintered surfaces with stable structural rigidity.
Reliability Delivered: The QZGEE Assurance
Built under QZGEE’s precision-controlled production system, the QX3400-5X integrates reinforced structural engineering, intelligent motion coordination, and long-cycle mechanical durability. These advantages ensure operators achieve consistent accuracy, reduced downtime, and stable performance throughout intensive stone-processing workflows.
Industrial Calibrated Frame
A factory-calibrated frame ensures excellent motion stability, even during high-speed five-axis operations. The reinforced structure minimizes deformation, maintains long-term geometric accuracy, and provides a stable foundation for cutting thick or brittle stone slabs with consistent performance.
Algorithm-Optimized Cutting
The control system uses advanced cutting-path algorithms to refine motion curves, reduce tool load, and enhance contour precision. This optimization improves edge quality, minimizes dimensional deviation, and supports complex shapes where accuracy is critical.
Low-Vibration Transmission
A balanced drivetrain and dampened transmission layout significantly reduce vibration across all cutting speeds. This design minimizes edge chipping, protects the spindle from stress accumulation, and results in cleaner, smoother finishes on various stone materials.
Modular Design
The QX3400-5X adopts a modular engineering structure that simplifies part replacement, maintenance cycles, and future upgrades. Each module is independently accessible, allowing technicians to service the machine quickly and maintain continuous production uptime.
High-Durability Components
Core mechanical elements are built from wear-resistant materials and long-life components designed for continuous heavy-duty cutting. This ensures a longer service cycle, fewer breakdowns, and stable output quality even under high-frequency industrial workloads.
Technical Support
QZGEE provides ongoing remote diagnostics, operational training, and after-sales technical guidance. This ensures users maintain optimal performance, resolve issues quickly, and keep their production line running reliably with expert-level assistance.
A Professional Partner for Automated Stone Production
Reliable Support for Global Processing Facilities
QZGEE provides a technology-driven foundation for automated slab-cutting workflows. Its five-axis systems, smart-labeling modules, and conveyor-integrated solutions help buyers achieve stable mass production, ensuring accuracy across large variation in stone materials.
Through consistent engineering control and standardized testing procedures, QZGEE ensures each QX3400-5X unit is optimized for durability, aligned for geometric precision, and ready for immediate deployment in fast-paced industrial environments.
Inside Our Intelligent Equipment Facility
Where Precision Engineering Meets Industrial Automation

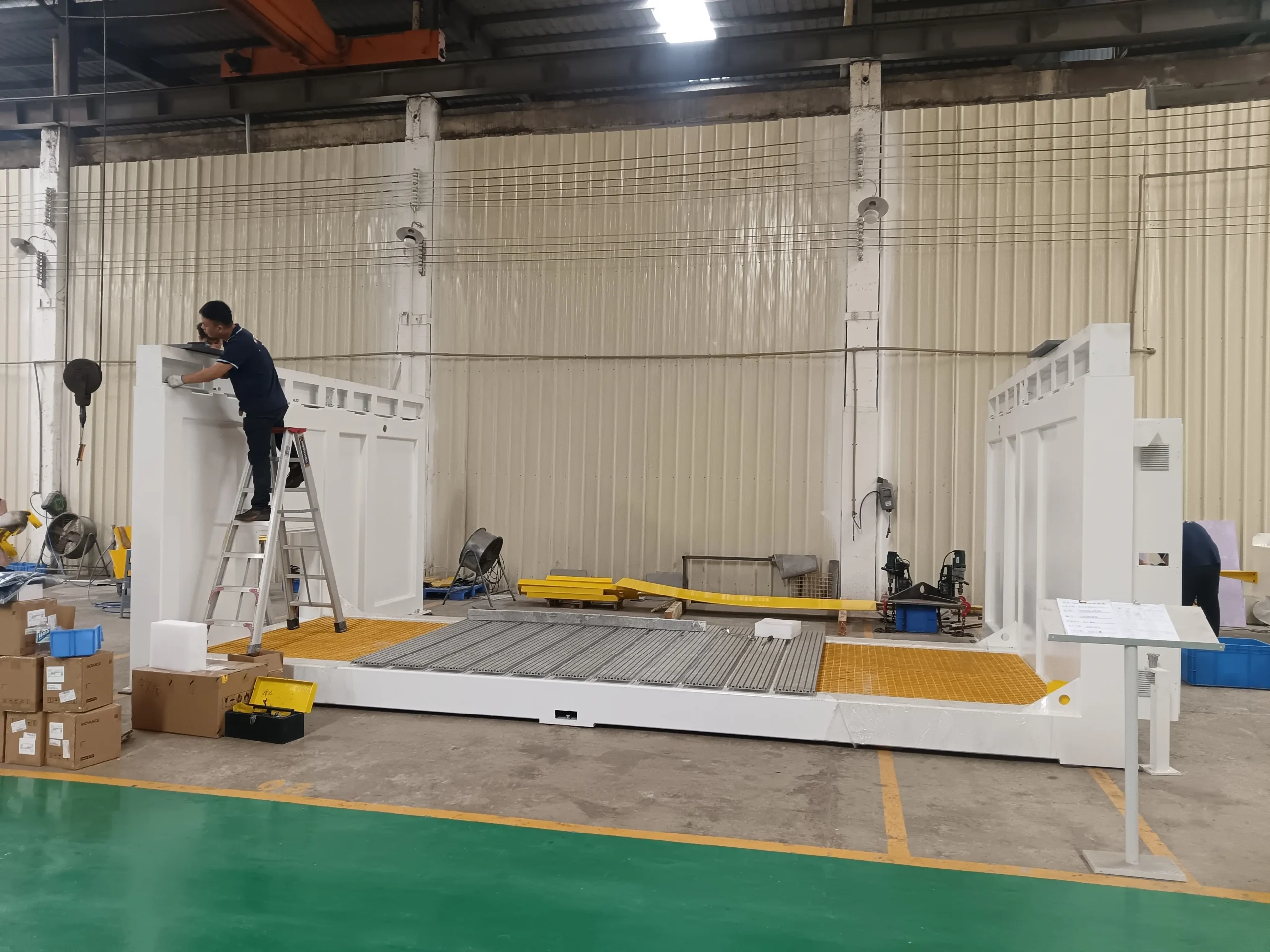

At our state-of-the-art manufacturing facility, each QX3400-5X production line is meticulously assembled using precision machining equipment and automated testing systems. Our integrated manufacturing process ensures every component—from loading mechanisms to cutting systems—meets exacting tolerance standards before final assembly.
Every complete production line undergoes comprehensive testing that simulates real-world production scenarios to validate performance and reliability. This rigorous quality assurance process guarantees that your automated system arrives fully operational and ready to deliver immediate production benefits from day one.
FAQ – QX3400-5X
It supports marble, granite, engineered quartz, sintered stone, and other dense materials. The reinforced bridge structure and stable spindle system ensure clean edges and reliable performance across different hardness levels.
The system includes an automatic QR code recognition module, which identifies slab data before cutting. This eliminates manual input, reduces setup time, and ensures each slab follows the correct cutting program throughout the workflow.
Yes. The QX3400-5X is designed with a modular integration interface, allowing seamless connection to front-end conveyors, loading platforms, or downstream polishing lines. This ensures continuous, uninterrupted workflow in large-scale facilities.
Installation requires adequate floor space for the complete line layout, appropriate power supply, and level flooring. Our team provides detailed site requirements during planning.
Five-axis motion allows angle-adjustable cutting, precise beveling, and accurate 3D shaping. It reduces repositioning, shortens cycle time, and provides higher geometric accuracy compared to traditional three-axis bridge saws.
Each unit undergoes digital calibration using high-resolution sensors and alignment fixtures. This ensures stable accuracy during long production runs and reduces cumulative deviation when processing large-format slabs.
Yes, we provide comprehensive training covering operation, programming, and maintenance of all system components to ensure your team achieves full operational proficiency.
