Intelligent Four Axis Precision Cuts the Future
Powered by CUTCAM for Intelligent and Efficient Stone Processing

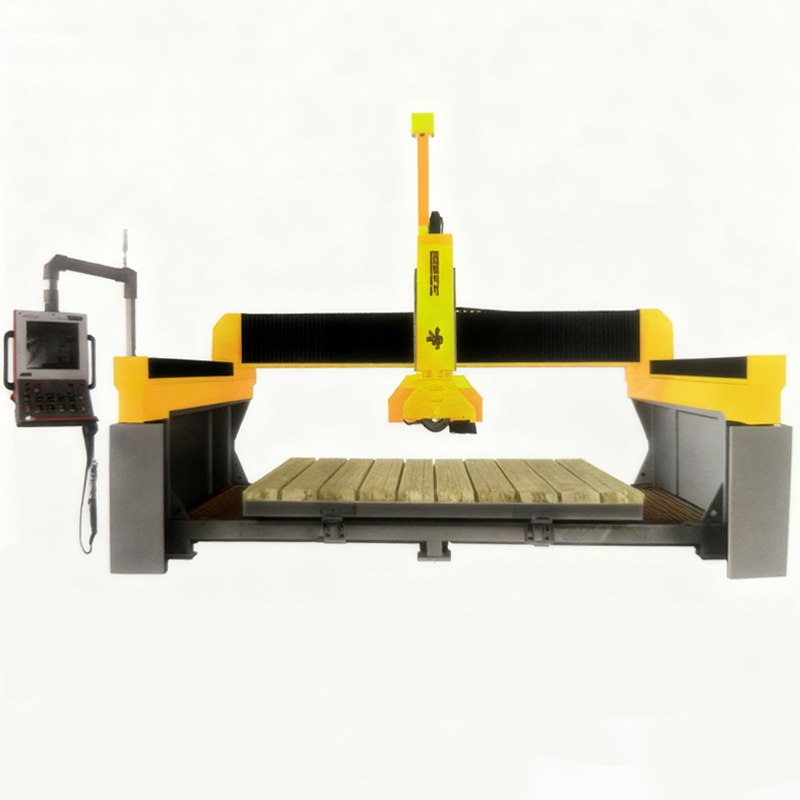

The QZGEE G3620 4XL Four Axis Bridge Stone Cutting Machine integrates advanced CUTCAM CNC control with high precision four axis linkage technology designed specifically to meet the challenges of complex and diverse stone processing It represents a new benchmark in intelligent and automated stone machining seamlessly transforming your creative designs into precise tangible products
Beyond powerful fundamental cutting capabilities the machine enhances production efficiency and material utilization through innovative features like an intelligent vision positioning system and automatic suction plate effectively preventing saw marks Whether processing standard slabs or intricate special shaped pieces the G3620 4XL delivers impeccable results with exceptional stability and reliability offering an unparalleled processing experience
Browse information related to QZGEE G3620 4XL
Quickly find all the important information about QZGEE G3620 4XL to help you make a decision.

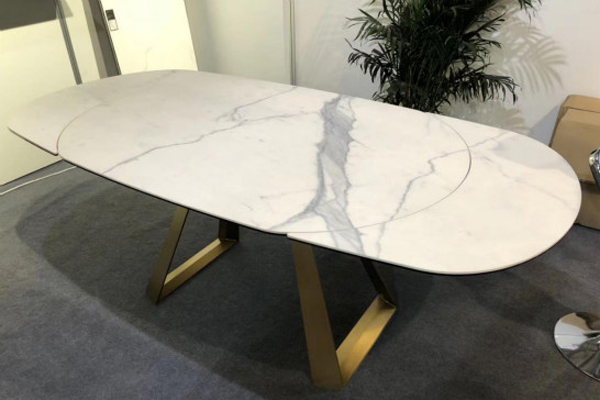

Versatile Applications Across Stone Processing
The G3620-4XL is ideal for workshops processing marble, granite, quartz, and sintered stone, especially where stable four-axis linkage is required for curves, circles, wave lines, countertop profiles, and engineered patterns. It delivers high-precision shaping, steady feed rates, and CAD-driven motion paths, enabling efficient production for home-decoration stone, commercial slabs, and architectural projects.
Multi-Shape Processing Demonstrated in Live Projects
Witness how the G3620 4XL transforms designs into precise reality
The G3620-4XL has been widely used for circle tables, compass-pattern inlays, custom countertop plates, and multi-layer graphic cutting. With stable axis control and CAD-import capability, each project achieves clean edge finishes, accurate geometry, and uniform surface quality even on dense or brittle materials.
G3620-4XL Functional Catalog
The product catalog provides a complete breakdown of four-axis stroke ranges, spindle parameters, cooling systems, oil lubrication modules, suction-plate functions, and supported machining modes. This allows buyers to clearly understand the machine’s capability structure before final selection.
Core Technologies Defining Industry Standards
The G3620-4XL combines servo-driven accuracy, stable four-axis synchronization, CAD-import automation, and reliable tool calibration. It ensures consistent contour shaping, reduced vibration, and smooth surface transitions, resulting in industrial-grade performance across diverse stone-processing tasks.
CAD-Import Cutting
Automatically reads CAD graphics and converts them into precise cutting paths, enabling complex shapes, arcs, and multi-layer designs with minimal manual adjustment.
Four-Axis Linkage
Supports linear, arc, and contour cuts with stable synchronized motion, reducing deviation and improving the accuracy of shaped components.
Suction-Plate Movement
The suction system assists in tool avoidance and repositioning, ensuring clean surfaces and minimizing saw marks during intricate layouts.
Tool Measurement System
The automatic tool-setting module ensures consistent blade height, reduces manual calibration time, and maintains long-term cutting accuracy.
High-Rigidity Frame
A reinforced structural frame delivers steady motion stability, reducing vibration during high-speed cutting and extending component life.
Servo-Driven Rack System
Servo and linear-guide operation provide smooth movement, faster response, and reliable positioning control for continuous cutting cycles.
Air-Cooled Blade System
Maintains spindle temperature, ensuring cleaner cuts, reduced tool wear, and stable performance on dense materials.
Multi-Shape Support
Handles diamond plates, stove plates, circles, ovals, polygons, wave lines, and countertop profiles with high repeatability.

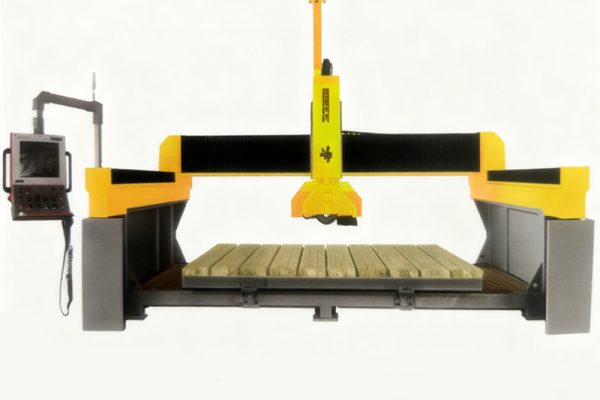

Model:G3620-4XL Specification for four axis bridge stone cutter
The G3620-4XL is equipped with industrial-grade components, including servo systems, high-precision reducers, air-cooled blade units, and optional vision modules. Each specification is designed to ensure stable long-term operation and consistent machining accuracy.
| Specification | Parameter | |
|---|---|---|
| Lifting Stroke | X Axis lifting stroke (mm) | 3600 |
| Y Axis lifting stroke (mm) | 2000 | |
| Z Axis lifting stroke (mm) | 300 | |
| A Axis lifting stroke (°) | 0-45 (Automatic) | |
| C Axis lifting stroke (°) | ±365 | |
| Max cutting thickness (mm) | 120 | |
| Lubrication style | V/2 Full-automatic oil add. Y axis is immersed by oil. A/C is adopted by grease. | |
| Basic specification | CNC control system | CUTCAM |
| Servo-drived software | CUTCAM | |
| Screw/linear guide/gear rack | TAIWAN | |
| High-precision reducer | MADE IN CHINA | |
| Fast running speed (m/min) | 25 | |
| Cutting Spindle | Main Motor Power (kw) | 22 |
| Rpm for spindle box (r/min) | 0-3000 | |
| Available for blade size (mm) | 300-500 | |
| Cooling way for blade | 风冷 Air cooling | |
| Basic hydraulic table | Workable size (mm) | 3400×2000 (L*W) |
| Workable tilling degree | 0-85 | |
| Available weight for table (kg) | 2000 | |
| Alternative | Specification for wood | |
| Water consumption (L/min) | ≈35 | |
| Total power (Kw) | ≈29 | |
| Total weight (kg) | ≈5000 | |
| Function specification | Overall dimension (mm) | 6000×3300×3650 |
| Camera function (Visual system) | √ | |
| Type setting function (Tool diameter measurement system) | √ | |
| Thickness measurement function (Thickness measurement system) | Alternative | |
| Suction-plate function (Slab-splicing system) | Alternative | |
| Milling cutter function (Milling&Drilling system) | Alternative |
Remark: all the function in the excel is standard&basic function, if over the excel specification, then need to do customize.
Sizes
Machine Dimensions and Processing Envelope
The G3620-4XL provides a working envelope defined by a 3400×2000 mm worktable and a tilting range of 0–85°, allowing slabs to be positioned and cut at controlled angles. With an overall machine dimension of 6000×3300×3650 mm, the structure offers a stable platform for processing countertop pieces, circular designs, and other architectural stone components within its rated size range.
Advantages Enhancing Production Stability
QZGEE ensures each G3620-4XL undergoes rigorous assembly control, high-precision machining, and automated testing. This results in long-term accuracy, smoother motion, and stronger structural durability for demanding cutting environments.
Manufacturing System
QZGEE operates a controlled in-house machining workflow, ensuring every frame, rail, and spindle part meets strict tolerance standards. This production discipline delivers stable cutting accuracy, reduced structural deviation, and long-term reliability under heavy daily operation.
CUTCAM Software Integration
The machine integrates CUTCAM CAD-import and toolpath logic, allowing users to generate precise cutting routes with minimal setup time. This digital workflow enhances shape accuracy, improves nesting efficiency, and reduces errors caused by manual programming.
Stable structural engineering
A reinforced bridge structure, balanced spindle body, and calibrated guide-rail system maintain motion stability during high-speed cycles. These structural elements reduce vibration, improve edge consistency, and extend mechanical service life in demanding stone fabrication tasks.
Motion & Tool AI
With automatic tool measurement, visual-positioning options, and servo-controlled axis movement, the machine achieves repeatable accuracy across complex geometries. These systems ensure consistent depth control, cleaner transitions, and smoother curves on marble, granite, and engineered stone.
Industrial-grade components
Key assemblies—including reducers, linear guides, gear racks, and the air-cooled spindle—are selected for durability and long service cycles. This ensures stable output during continuous production, minimizing downtime and maintaining cut quality across diverse materials.
Full-Cycle Technical Support
QZGEE provides installation training, remote diagnostics, and workflow optimization for end users. This comprehensive support framework keeps the production line stable, improves operator efficiency, and ensures the equipment performs reliably in both small-batch and high-volume applications.
Your Trusted Partner in Automated Stone Processing
Supporting Industrial Growth with Reliable Engineering
At QZGEE we understand that your productivity and profitability depend on the reliability and capability of your equipment That is why we engineer every machine with a focus on durability precision and user friendly operation We are committed to providing not just a product but a comprehensive solution that drives your business growth
Our partnership extends long after the sale With dedicated technical support training and a responsive service network we ensure you achieve a rapid return on your investment and continue to operate at peak efficiency Let us help you transform your production capabilities and unlock new opportunities in the market
Inside Our Precision Manufacturing Facility
Engineered for Stability, Built for Industrial Excellence
Our modern manufacturing facility is where innovation meets quality Every QZGEE machine is born in a facility equipped with advanced CNC machinery and rigorous quality control protocols We use premium components from trusted suppliers to ensure the longevity and reliability that our customers depend on
The assembly process is managed by our team of experienced engineers and technicians who take pride in their craftsmanship From the solid base construction to the final software calibration every step is monitored to meet our strict standards This controlled manufacturing environment is the foundation of the superior performance and stability that defines the G3620 4XL
FAQ – G3620-4XL
The four axes X Y Z A and C allow for complex 3D profiling and bevel cutting enabling you to produce intricate edges sink holes and other three dimensional shapes that are impossible with a standard three axis machine
It supports circles, arcs, ovals, diamond plates, countertop profiles, polygons, and wave lines with high contour accuracy.
Yes. The machine supports CAD-import through CutCam software, automatically converting vectors into cutting paths.
It handles marble, granite, quartz, sintered stone, and engineered materials using stable four-axis linkage.
Yes. The machine features auto-tool calibration, improving precision and reducing setup time.
It avoids saw marks, assists in repositioning, and enhances cutting surface quality.
Yes. Its wide worktable and adjustable cutting angle support large-format slabs and thick materials.
