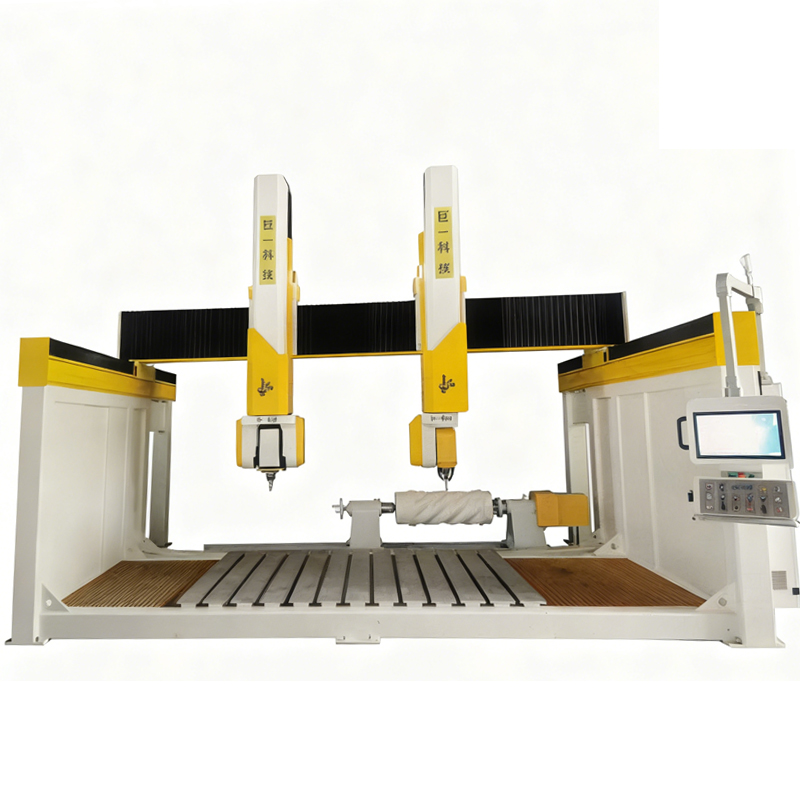

JY3215-HC6X Dual-Head 6-Axis Stone Machining Center
Unifying Saw Cutting and 3D Carving in a Single Production Cycle
The JY3215-HC6X is engineered to eliminate production bottlenecks by integrating a high-power saw blade head and a high-speed carving head on one robust platform. This configuration allows for sequential or independent processing of stone materials, from initial rough cutting to final detailed sculpting, without the need for re-fixturing or machine changeovers.
With its full 6-axis control system encompassing XYZ linear movements and AC rotary axes, this machine addresses the core challenges of processing medium and large stone blocks. It is specifically designed to manufacture complex three-dimensional components such as Roman column heads and spiral columns with a level of efficiency and precision previously unattainable with conventional single-function equipment.
Navigate The JY3215-HC6X Capabilities
Access detailed information about this dual-head 6-axis machining center through the sections below.
JY3215-HC6X Application Scope
The JY3215-HC6X is deployed for fabricating components where complex geometry meets high material volume. Its primary application is in the production of architectural specials and landscape hardscapes, including grand villa entryways with ornate column capitals, intricate garden water features, and complex balustrades.
The machine’s ability to directly carve 3D sculptures from solid block, combined with its capacity to perform heavy-duty saw cutting, makes it indispensable for workshops focused on high-value, customized stonework that demands both structural form and artistic detail.
JY3215-HC6X Project Gallery
From Raw Block to Finished Artifact: A Showcase of Integrated Machining
Witness the transformation of granite and marble slabs into functional art. These cases demonstrate the JY3215-HC6X’s unique capability to handle the entire workflow—from slicing large blocks with its 25KW saw head to applying fine textures and details with its 24,000 RPM carving head—on a single machine platform.
JY3215-HC6X Product Catalog
Request the full technical dossier for the JY3215-HC6X to access detailed axis diagrams, spindle performance curves, foundation layout plans, and a complete bill of materials .—everything for smooth quoting and floor-planning.
Key Features of the JY3215-HC6X
The design philosophy of the JY3215-HC6X centers on powerful, uninterrupted processing of solid stone. Each feature is purpose-built to enhance rigidity, expand processing scope, and ensure operational simplicity.
Dual-Head Functional Independence
Operators can engage the 25KW saw head or the 24,000 RPM carving head independently or in sequence, enabling a single machine to perform both brutal material removal and delicate finishing operations.
Expansive 6-Axis Working Range
A 3500mm X-axis travel combined with a ±365° C-axis rotation provides the physical capacity and angular freedom to machine large, complex workpieces like full-round sculptures from all necessary angles.
Heavy-Duty Cast Bed Construction
The machine's 9000 kg mass provides an immovable foundation, effectively damping vibrations generated during high-force saw cutting to protect detail accuracy during concurrent carving operations.
High-Torque Saw Spindle System
Equipped with a BT40 taper spindle rated at 25KW, this system is built to drive saw blades up to 700mm in diameter through the toughest granite without bogging down.
Precision Carving Spindle Assembly
The ER32 collet system on the 7.5KW carving head ensures superior tool grip and concentricity, which is critical for achieving fine detail and smooth surface finishes in 3D relief work.
Rigid Aluminum Work Platform
The standard 3000x2000mm table offers a solid, flat surface for securing large slabs and blocks, with optional vacuum chucking to enhance hold-down for irregular profiles.
Simplified Tool Management
Optional automatic tool setting probes for both heads measure and compensate for tool wear and length offsets in-machine, maintaining dimensional accuracy across long production runs.
Production-Ready Safety Architecture
The control system integrates hardwired emergency stops and axis travel limits within a CE-ready framework, ensuring operator safety is prioritized without compromising machine accessibility.
JY3215-HC6X Standard Configuration and Options
The machine arrives production-ready in its standard form. QZGEE provides a set of curated optional packages to extend its capabilities for specific operational requirements.
| Category | Project | Parameter |
|---|---|---|
| The machine stroke | X axis stroke (mm) | 3500 |
| Y axis stroke (mm) | 2500 | |
| Z axis stroke (mm) | 1500 | |
| A axis stroke (°) | 0–180 | |
| C axis stroke (°) | ±365 | |
| Cutting thickness (mm) | 6700 × 4200 × 4800 | |
| General configuration | Spindle power (main spindle) (kW) | 25 kW (water-cooled) |
| Spindle speed (main spindle) (rpm) | 0–8000 | |
| Spindle type (main spindle) | BT40 / foot-type | |
| Spindle power (engraving spindle) (kW) | 7.5 kW (water-cooled) | |
| Spindle speed (engraving spindle) (rpm) | 0–24000 | |
| Spindle type (engraving) | BT40 / foot-type | |
| Saw blade size (mm) | Φ300–700 | |
| Work platform type | Aluminum table | |
| Work platform size (mm) | 3000 × 2000 | |
| Sucker function | None | |
| Functional configuration | Knife alignment function | Optional |
| Photography function | Optional | |
| Total power (kW) | 42 | |
| Total mass (kg) | ≈9000 |
Note: The configuration functions in this table are standard configurations. If the functional parameters you need are not listed, customization is available.
Sizes
Technical Envelope and Physical Footprint
The JY3215-HC6X is dimensioned for substantial material input. Its core travels of 3500 mm (X) × 2500 mm (Y) × 1500 mm (Z) define a generous working cube. The A-axis offers 180° of tilt, while the C-axis provides unlimited rotation, allowing for continuous machining on all sides of a workpiece. The machine’s own footprint of 6700 × 4200 × 4800 mm requires adequate floor space and foundation planning for installation.
The QZGEE JY3215-HC6X Investment Advantage
Choosing the JY3215-HC6X from QZGEE is a smart investment for businesses looking to excel in the custom stone industry. This machine offers significant advantages with its precision engineering and seamless integration, providing reliable performance that boosts productivity and enhances long-term competitiveness in the market.
Reduced Work-in-Process
By completing multiple processes on a single platform, the machine minimizes intermediate handling and queuing, slashing total project lead times and reducing the risk of damage during transfer.
Material Integrity
The inherent stability of the 9000 kg frame prevents flex and vibration, ensuring that fine details carved into a workpiece are not compromised by the vibrations of simultaneous or subsequent heavy cutting.
Direct Technical Support
QZGEE provides direct access to application engineers for custom G-code post-processing and workflow optimization, ensuring the machine is perfectly tuned for your specific product mix.
CE-Grade Safety Integration
The machine's control and safety systems are designed from the ground up to meet CE compliance, facilitating smoother importation and certification processes in international markets.
High-Demand Materials
The combination of high spindle power and extreme rigidity makes this machine particularly effective for processing dense and abrasive stones like granite and quartzite, maintaining performance over long duty cycles.
Future-Proof Design
The machine's architecture allows for field-upgradable options like vision systems and advanced tool management, protecting your investment as your business and technology needs evolve.
Your Reliable Partner in Stone Processing Innovation
Precision - Power - Proven Performance
QZGEE specializes in advanced multi-axis machining centers engineered for the most demanding stone fabrication challenges. The JY3215-HC6X, with its unique dual-head design and true 6-axis kinematics, delivers unparalleled versatility by combining heavy-duty saw cutting with high-speed 3D carving. From massive architectural elements to intricate artistic sculptures, it guarantees exceptional repeatability and finish quality across all your projects.
We stand behind our machines with comprehensive support, including direct OEM customization, CE certification, and global service networks. This ensures that your investment is protected and your production continues to run smoothly and profitably, wherever you are located.
Our Factory — QZGEE's Precision Manufacturing
Where Robust Machine Tools are Born from Raw Steel
At QZGEE, we take pride in our state-of-the-art manufacturing facility, where we build each JY3215-HC6X with a focus on precision and quality control. Our factory is equipped with the latest CNC machinery, automated production lines, and advanced testing equipment to ensure every machine meets global standards for performance and reliability.
Each JY3215-HC6X undergoes extensive testing, including cutting accuracy verification, structural stability assessments, and long-term durability checks. Our rigorous process ensures that every machine leaving our facility is ready to deliver consistent performance and withstand the demands of high-volume production environments.
FAQ – JY3215-HC6X Cutting Machine
The JY3215-HC6X delivers ±0.05mm cutting accuracy for high-precision stone cutting.
The JY3215-HC6X is suitable for cutting marble, granite, quartz, and other stone materials.
Yes, we offer OEM & ODM customization for spindle power, cutting speeds, and worktable sizes.
The cutting speed can reach up to 3500 rpm, optimizing throughput for both small and large-scale projects.
Yes, it is designed to handle large slabs, with worktable sizes available up to 3600mm x 2100mm.
The JY3215-HC6X features one-touch setup, reducing downtime and speeding up production.
The JY3215-HC6X is equipped with CE-grade safety features, including emergency stops and interlocks for secure operation.
