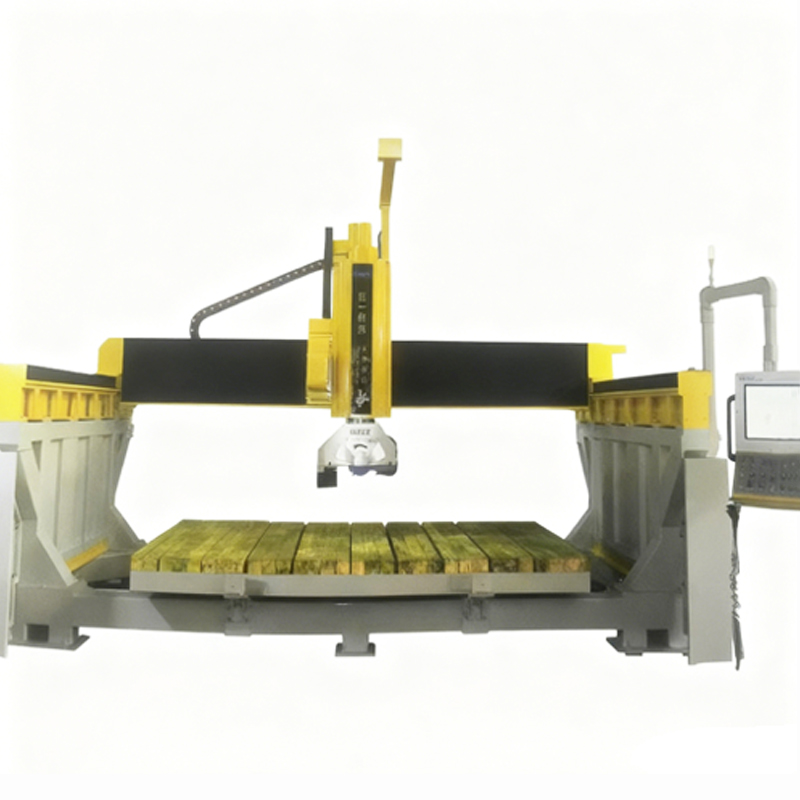

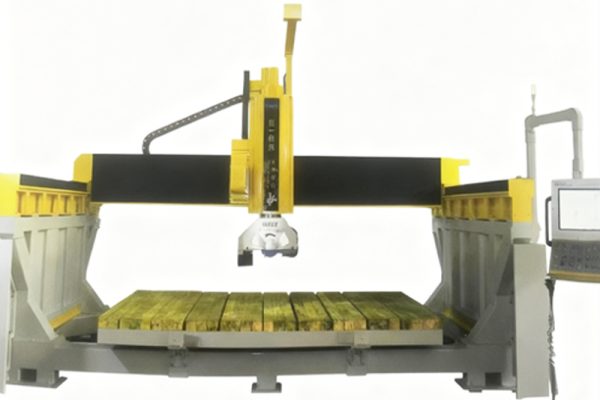

G3400-600L5X Technology for Complex Multi-Axis Stone Cutting
Precision and Versatility in Stone Fabrication
The G3400-600L5X is an integrated multi-functional five-axis bridge cutting machine engineered to excel in both standard slab production and complex special-shaped processing. Its advanced design allows for the efficient machining of a wide range of stone materials, including marble, granite, quartz, and sintered stone, making it an indispensable asset for modern workshops.
With high-speed operation and intelligent control systems, this machine significantly reduces processing time while maintaining exceptional cutting accuracy. It is the ideal solution for stone enterprises involved in engineering projects, landscape construction, and decorative stone processing, offering a perfect balance of performance and affordability.
G3400-600L5X Access Guide
Navigate through the following sections to discover detailed information about this versatile stone processing machine.
G3400-600L5X Application Scope
This machine specializes in producing decorative architectural elements and functional stone components. It is perfectly suited for creating villa window frames, garden arc boards, and intricate plaza parquet patterns. Additionally, it handles various special-shaped processing tasks with ease, including wave lines, straight lines, and arc lines, making it an essential tool for landscaping projects and high-end residential stonework.
G3400-600L5X Project Gallery
Excellence in Stone Processing Across Multiple Applications
How the G3400-600L5X transforms raw stone into precision components. Our gallery showcases its capability to produce everything from perfect circles and hexagons to sophisticated fan shapes and specification boards, demonstrating consistent quality across all stone types.
G3400-600L5X Product Catalog
The catalog groups essential machining equipment—from bridge saws to profiling lines—to help workshops build end-to-end cutting workflows. Each category has been refined to align with different fabrication scales, operational targets, and efficiency demands.
Key Features of the JY3215-HC6X
The design philosophy of the JY3215-HC6X centers on powerful, uninterrupted processing of solid stone. Each feature is purpose-built to enhance rigidity, expand processing scope, and ensure operational simplicity.
Reinforced Bridge
A reinforced bridge casting reduces vibration and stabilizes five-axis motion, ensuring accurate cutting performance during long-span and continuous stone machining.
Five-Axis Linkage
The synchronized five-axis linkage enables multi-angle shaping and curved profiling in one setup, improving precision and reducing repositioning time.
Precision Spindle
A high-precision spindle delivers smooth edges and consistent detailing on marble, granite, and engineered stone while maintaining steady torque output.
Smart Path Control
Intelligent path planning optimizes tool movement for cleaner transitions, stable surface quality, and efficient cutting across complex geometries.
Auto Lubrication
The built-in lubrication and cooling system protects moving parts, stabilizes spindle temperature, and supports long-duration multi-axis cutting operations.
Shock-Resistant Base
A vibration-damping support base minimizes resonance and enhances tool stability, maintaining reliable accuracy during high-speed stone cutting.
Digital Alignment
Laser-guided digital positioning improves initial referencing, reduces setup deviation, and increases accuracy on architectural and oversized slab tasks.
Large Format Capacity
The extended cutting range accommodates long slabs and architectural panels, supporting wide-format processing with smooth multi-directional motion.
Device Parameter Configuration Table
The following table presents the standard technical specifications of the G3400-600L5X, showcasing its core capabilities. All parameters represent standard configuration with optional features available for enhanced functionality.
| The machine stroke | ||
|---|---|---|
| X axis stroke (mm) | X axis stroke | 3400 |
| Y axis stroke (mm) | Y axis stroke | 2000 |
| Z axis stroke (mm) | Z axis stroke | 2000 |
| A axis stroke (°) | A axis stroke | ±365 |
| C axis stroke (°) | C axis stroke | 0–90 (automatic) |
| Cutting thickness (mm) | Cutting thickness | 0–170 |
| Fast running speed (m/min) | Fast running speed | 25 |
| Spindle power (kW) | Spindle power | 18.5–22 |
| Spindle speed (rpm) | Spindle speed | 300–600 |
| General configuration | ||
| Platform size (mm) | Platform size | 3400 × 2000 |
| Flip angle (°) | Flip Angle | 0–85 |
| Total power (kW) | The total power | ≈ 31 |
| Total weight (kg) | The total weight | ≈ 7000 |
| Equipment dimensions (mm) | Equipment dimensions | 6000 × 3300 × 3700 |
| Functional configuration | ||
| Camera function (visual system) | Camera function | Optional |
| The knife function (blade diameter measuring system) | The knife function | Optional |
| Thickness function (slab thickness measuring system) | Thickness function | Optional |
| Chuck function (clamping system) | Chuck function | Optional |
| Cutter function (drilling, milling) | Cutter function | Optional |
Sizes
Operational Size Configurations
The G3400-600L5X is adaptable to workshops with varied spatial needs. Standard and extended-table configurations support oversized slabs, long-format architectural panels, and custom project dimensions. Its modular footprint ensures efficient floor utilization while maintaining full five-axis functionality.
Reliability Delivered: The QZGEE Assurance
Built for continuous production, the G3400-600L5X delivers stable precision under prolonged operation. Its integrated drive system, reinforced frame, and calibration workflow provide consistent accuracy, reduced downtime, and improved long-term component durability. This engineering approach results in predictable performance even in demanding fabrication environments.
Long-Span Rigidity
The reinforced long-span bridge design maintains structural stiffness under heavy loads, reducing vibration and ensuring stable five-axis accuracy during extended cutting cycles. This rigidity improves edge quality and supports consistent production in demanding environments.
Five-Axis Stability
The synchronized five-axis motion control system delivers precise interpolation for multi-angle, curved, and deep-profile cuts. Its stable linkage minimizes deviation and maintains smooth tool movement, enabling high-precision shaping with fewer manual adjustments.
Advanced Cooling System
An optimized thermal-management and lubrication system stabilizes spindle temperature, protects internal components, and supports long-duration machining. Reliable cooling ensures consistent performance when processing dense or heat-sensitive stone materials.
High-Performance Spindle
The spindle is engineered for high torque and fine-edge detailing, producing smooth cuts across marble, granite, quartz, and sintered stone. Its balanced structure maintains steady cutting force, improving finish quality on complex textures and precision contours.
Digital Calibration
The integrated digital calibration platform provides accurate axis referencing, reduced setup error, and consistent tool alignment. Automated measurement routines enhance repeatable accuracy, supporting precise cuts even in multi-stage fabrication workflows.
Durable Mechanical Build
The machine’s heavy-duty components, sealed modules, and industrial-grade bearings deliver long service life under continuous operation. Its robust construction maintains accuracy over time, ensuring reliable output for high-volume stone processing tasks.
A Partner Committed to Stone Fabrication Growth
Building Success Through Collaborative Innovation
Our five-axis systems are developed to support fabricators transitioning into higher-precision and diversified production. With advanced testing, modular design, and export-ready configuration, the machine helps workshops improve competitiveness in global stone markets.
Through continuous investment in R&D, performance benchmarking, and field-level optimization, we aim to deliver long-term operational stability and practical manufacturing value. Every delivered unit includes installation guidance, calibration, and ongoing technical support designed for real production challenges.
Our Factory — QZGEE Advanced Manufacturing
Built for Precision, Reliability, and Export Standards
Our production base integrates frame machining, CNC processing, assembly workshops, and full-path testing stations. Each machine undergoes structural verification, spindle balancing, axis calibration, and system stress testing.
With experienced technicians and advanced equipment, the factory ensures consistent quality across every machine. From the raw casting process to the final trial-cut inspection, each step reflects a strict commitment to technical performance and export-level durability.
FAQ – G3400-600L5X
The machine efficiently processes marble, granite, quartz stone, sintered stone, and ceramic slabs, handling materials up to 170mm thickness with precision.
The five-axis capability enables complex angle cutting and contouring operations in a single setup, reducing processing time and improving accuracy.
The machine maintains positioning accuracy within 0.1mm through high-precision linear guides and ballscrew drives.
Yes, the 3400x2000mm work platform accommodates most standard slab sizes, with optional extensions available for larger formats.
The system supports common CAD formats for automated toolpath generation.
Extended table lengths and wider-format options are available on request.
Lubrication, coolant checks, and spindle inspections should follow monthly cycles.
