QZGEE 450 5-Axis CNC Bridge Saw for Stone Fabrication
Trusted China manufacturer • Precision • Reliability • Global support
The QZGEE 450 is an all-in-one five-axis CNC bridge saw designed for both slab cutting and profiling of complex shapes, including polygons, triangles, fan shapes, countertops, ovals, rhombuses, circles, horse-belly edges, and custom-angle chamfers. Combining high speed, cutting precision, and smart operation, it is perfectly suited for processing sintered stone, marble, granite, engineered stone, and quartz. With its versatility and reliability, the QZGEE 450 has become the go-to choice for stone processing companies in engineering projects and home decoration industries worldwide.
QZGEE 450 5-Axis CNC Stone Machine — Quick Guide
Easily explore the QZGEE 450 machine’s capabilities, from cutting, drilling, profiling, and polishing to full customization. Jump directly to applications, case studies, service advantages, and factory process.
Applications of QZGEE 450 Five-Axis CNC Bridge Saw in Stone Processing
The QZGEE 450 is an integrated five-axis CNC bridge saw, engineered for both standard slab cutting and advanced special-shape fabrication. It handles polygons, triangles, arcs, table panels, ovals, and custom chamfers with precision and efficiency. With a single setup, the machine executes cutting, drilling, profiling, and finishing seamlessly. By importing CAD designs, operators can preload optimized machining programs, ensuring fast speed, high precision, and stable quality across marble, granite, quartz, sintered stone, and more.
QZGEE 450 Five-Axis CNC Bridge Saw Series
From slab cutting to complex shaping — all in one machine
Explore real-world applications and project cases of the QZGEE 450. Each example showcases high-precision stone processing across marble, granite, quartz, and sintered stone. With OEM/ODM customization and reliable performance, QZGEE supports the production demands of manufacturers, workshops, and global suppliers, delivering efficiency and consistency for diverse stone fabrication needs.
| Project | Parameter |
|---|---|
| X axis stroke | 3400 mm |
| Y axis stroke | 2000 mm |
| Z axis stroke | 250 mm |
| A axis stroke | 0–90° (optional) |
| C axis stroke | ±365° |
| Cutting thickness | 80 mm |
| Fast running speed | 28 m/min |
| Spindle power | 18.5 kW |
| Spindle speed | 0–4500 rpm |
| Saw blade diameter | Ø 350–Ø 500 mm |
| Platform size | 3400 × 2000 mm |
| Flip Angle | 0–85° |
| Total power | ≈ 30 kW |
| Total weight | ≈ 9000 kg |
| Equipment dimensions | 6000 × 3300 × 3000 mm |
QZGEE 450 5-Axis CNC Bridge Saw Catalog
Get the full catalog of the QZGEE 450, including machine specifications, layout drawings, dimensions, and tool options. The catalog also covers installation requirements, safety standards, workflows, and OEM/ODM customization to support your production needs.

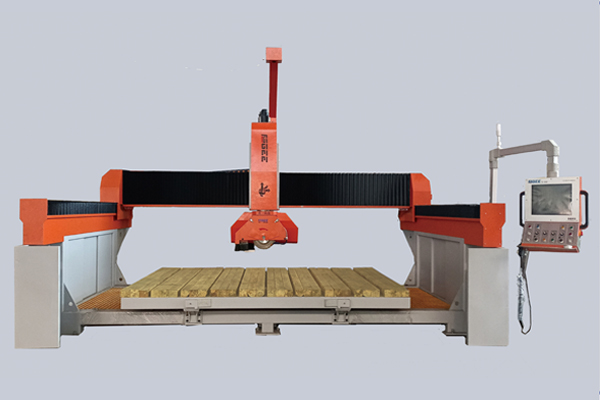

Key Features of QZGEE 450 5-Axis CNC Bridge Saw
The QZGEE 450 is an integrated five-axis CNC bridge saw, purpose-built for slab cutting and complex shape processing. Engineered to handle polygons, triangles, arcs, ovals, custom chamfers, and special-edge profiles, it ensures fast speed, high precision, and smart operation across diverse stone applications.
Large Worktable
A 3400 × 2000 mm worktable provides ample space for oversized slabs, reducing repositioning and boosting efficiency in countertop and wall panel fabrication.
Reliable Power System
With ≈38 kW installed power, the QZGEE 450 ensures continuous cutting strength for dense materials, delivering stable performance in long production runs.
Heavy-Duty Frame
The reinforced steel frame minimizes vibration, supports heavy slabs, and guarantees long-term durability in high-volume applications.
High Precision
Calibrated axes and real-slab testing ensure accurate cuts, reduced material waste, and consistent quality for premium stone projects.
Smart Automation
One-button program start integrates cutting, drilling, profiling, and finishing, saving time and simplifying workflows.
Optimized Utilities
Runs with ≈30 L/min water, 0.65–0.8 MPa air pressure, and 380 V / 100 A power, making it energy-efficient and easy to integrate into global factory setups.
OEM/ODM Options
Flexible customization includes extended tables, automation modules, and cooling systems, enabling tailored solutions for diverse production needs.
Global Support
Delivered with CE docs, starter kit, installation checklist, and remote guidance, backed by QZGEE’s worldwide after-sales network for reliable service.
Popular Custom Options for QZGEE 450 5-Axis CNC Machine
QZGEE offers a range of OEM & ODM customization for the 450 model. From extended worktables and enhanced power systems to automation add-ons, each configuration is tailored to meet diverse stone processing requirements.
| Configuration | Availability |
|---|---|
| Camera function | Optional |
| Knife function | Optional |
| Thickness function | Optional |
| Chuck function | Optional |
| Cutter function | Optional |
Sizes
Flexible Worktable & Layout Options
The QZGEE 450 5-Axis CNC Bridge Saw offers multiple configurations: 3400 × 2000 mm, 3500 × 2100 mm, and 3700 × 2100 mm. Each layout is optimized for efficient slab positioning and irregular-shape cutting, supported by vacuum-assisted loading and precision alignment, enabling smooth handling even for complex design projects.
Why Choose QZGEE SQG30/45 5-Axis CNC Bridge Saw
Built for precision, reliability, and versatility, the QZGEE 450 delivers consistent performance across marble, granite, quartz, and sintered stone. With heavy-duty design and smart automation, it helps manufacturers improve efficiency, reduce labor, and stay competitive in global markets.
Precision Cutting Accuracy
Strictly calibrated axes and trial cuts on real slabs ensure high accuracy and smooth finishes, reducing material waste and improving product quality.
Automated Smart Operation
One-button program start simplifies complex workflows, allowing operators to load slabs, set parameters, and process jobs quickly with minimal effort.
Large Worktable Handling
The 3400 × 2000 mm worktable supports heavy slabs safely and efficiently, reducing manual handling and improving operator safety.
Reliable Power System
With ≈38 kW installed power, the QZGEE 450 delivers stable cutting performance for dense granite and quartz during long production runs.
OEM/ODM Customization
Flexible options such as extended tables, automation modules, and branded configurations let customers tailor machines to their factory needs.
Global Service & Support
Every machine comes with CE certification, starter kit, installation checklist, and remote guidance, backed by QZGEE’s worldwide after-sales network.
Your Reliable QZGEE 450 5-Axis CNC Bridge Saw Manufacturer In China
Innovation · Precision · Global Service
QZGEE delivers advanced 450 five-axis CNC bridge saws designed for both standard slabs and special-shape fabrication. From countertops and vanities to wall cladding and bespoke designs, the 450 enables accurate, intelligent, and efficient processing of marble, granite, quartz, and sintered stone.
We provide OEM/ODM customization, CE-certified compliance, and worldwide delivery, ensuring machines arrive installation-ready. Backed by training and responsive support, QZGEE helps global stone-processing enterprises achieve higher efficiency and long-term reliability.
QZGEE Factory — Professional 5-Axis CNC Machine Builder
From Engineering to Final Testing, All In-House
Every QZGEE 450 CNC bridge saw is produced with precision machining, spindle assembly, and axis calibration. Real-slab test runs confirm accuracy for polygons, arcs, ovals, and custom chamfers, ensuring stable performance for complex applications.
Each machine ships with a starter tool kit, installation checklist, CE documentation, and remote guidance, making it production-ready upon delivery. With strict inspections and reliable in-house testing, QZGEE minimizes downtime and maximizes ROI for global stone fabricators.
FAQ – QZGEE 450 5-Axis CNC Bridge Saw
The machine is designed for marble, granite, quartz, and sintered stone, ensuring stable performance across both soft and dense materials.
The standard worktable is 3400 × 2000 mm, with extended options up to 3700 × 2100 mm available for large slabs.
The table size is 3400 × 2000 mm, with both rotation and tilting functions for easier slab handling.
It requires ≈30 L/min water and 0.65–0.8 MPa air pressure to ensure optimal cooling and pneumatic operation.
Yes. QZGEE provides OEM/ODM services, including extended worktables, automation modules, branding, and tool system upgrades.
Each machine comes with a starter kit, installation checklist, CE documentation, and remote guidance, backed by QZGEE’s global after-sales service.
