High-Precision Five-Axis CNC for Advanced Stone Fabrication
Automated CNC for arc lines, special shapes, and complex profiling

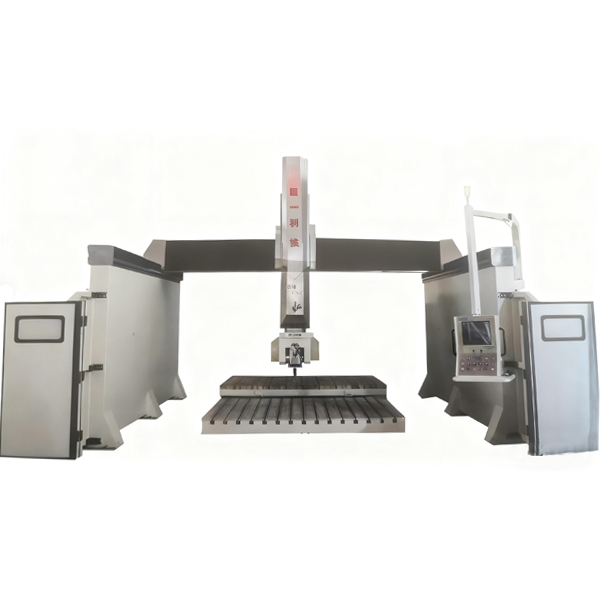

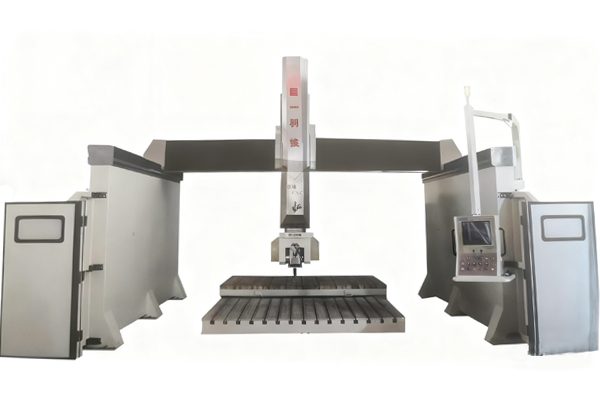

The 700 Model Five-Axis CNC Bridge Saw is an integrated multi-functional cutting system, engineered for both standard specifications and a wide range of special-shape processing. It handles applications such as arc lines, straight lines, villa window frames, garden arc boards, and parquet patterns with precision and efficiency.
With fast speed, low processing cost, high cutting accuracy, and intelligent operation, the 700 model is suitable for diverse stone materials including marble, granite, quartz, and sintered stone. It has become the preferred equipment for stone enterprises engaged in engineering projects, landscape construction, and decorative stone processing worldwide.
Navigation Guide for JY4315-CH
The following sections provide quick access to detailed information about this five-axis machining center to help you make informed decisions.
JY4315-CH Application Scope

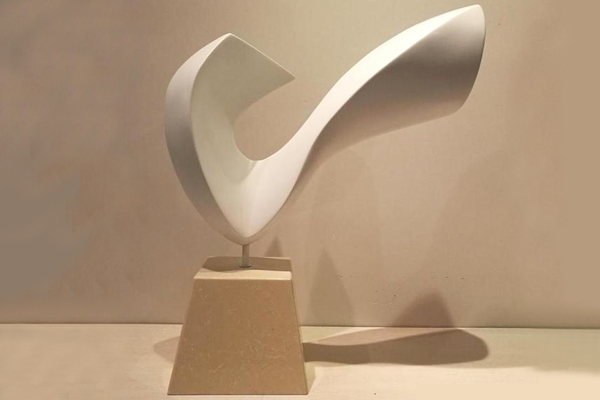

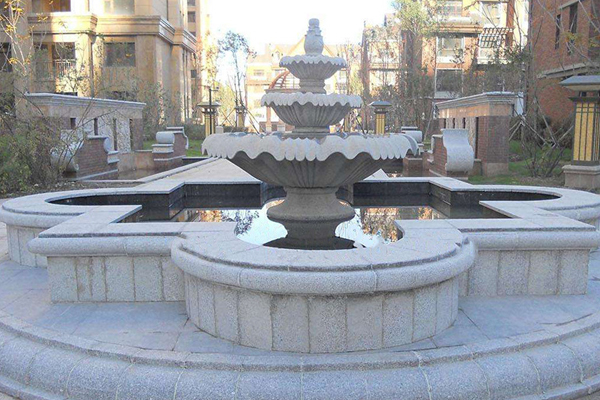

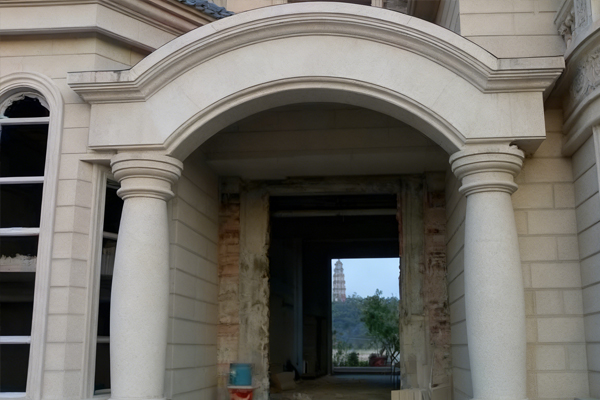

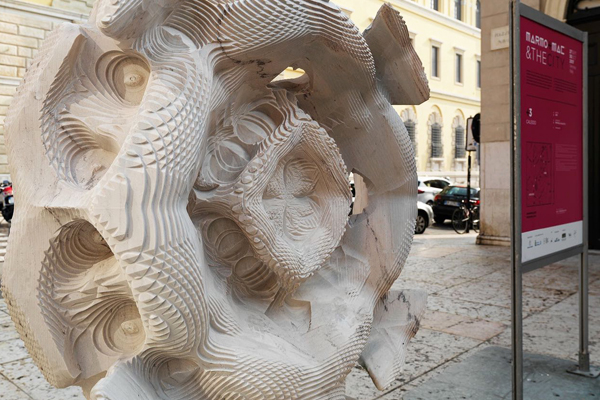

This machine excels in creating complex architectural and decorative stone elements. It is the ideal solution for producing villa window frames, garden arc panels, and intricate plaza parquet patterns. Furthermore, its advanced capabilities extend to detailed 3D carving and sculpting, enabling the production of artistic reliefs, custom column heads, and other complex three-dimensional components that demand the highest level of precision and artistic freedom.

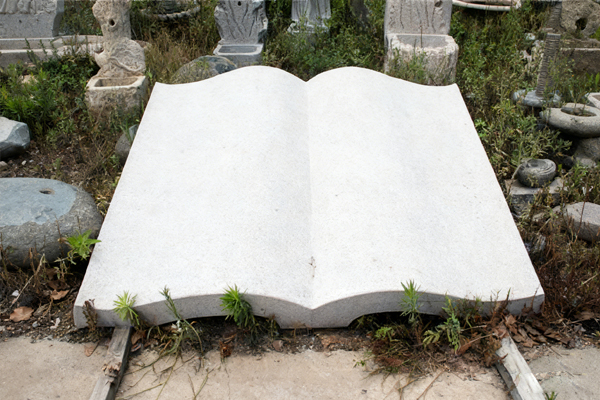

JY4315-CH Project Gallery
Precision in Action From Simple Cuts to Complex Carvings
Explore how the JY4315-CH transforms raw stone into functional art and architectural masterpieces. This gallery showcases its ability to produce a wide array of shapes, including flawless ellipses, precise hexagons, and custom fan patterns, demonstrating its versatility across different project types and material finishes.
JY4315-CH Product Catalog
The JY4315-CH series includes full-spectrum support for cutting, profiling, carving, copying, and 3D machining, enabling stone manufacturers to build complete production workflows with a single integrated equipment platform.
Key Features of JY4315-CH Five-axis
The JY4315-CH delivers multi-axis precision, stable heavy-load machining, and intelligent automation. Its mechanical rigidity, servo coordination, and tool control accuracy ensure reliable processing for complex stone geometries and long-duration industrial workloads.
High-Precision Five-Axis Linkage
Provides coordinated motion for 3D carving, copying cuts, and curved-surface machining, enabling precise results across detailed architectural and artistic applications.
Large Travel Structure
Extended X/Y/Z travel supports oversized stone slabs, irregular blocks, and long-format engineering panels while maintaining high structural rigidity.
Intelligent CNC Control System
Equipped with high-speed interpolation, dynamic compensation, and user-friendly operation, ensuring stable toolpaths and repeatable product quality.
Heavy-Duty Frame Construction
Robust gantry build provides excellent vibration resistance, delivering cleaner cuts, smoother edges, and stable multi-hour processing.
Multi-Process Machining Capability
Supports cutting, slotting, drilling, shaping, contouring, and 3D engraving, reducing manual transitions and improving workflow efficiency.
High-Power Spindle Performance
A reliable spindle system delivers powerful cutting force, suitable for dense granite, marble, quartzite, and sintered stone materials.
Flexible Tooling Options
Allows for saw blades, router bits, milling cutters, and multi-function tool combinations, meeting diverse fabrication needs.
Advanced Safety & Monitoring
Camera-assisted positioning, overload protection, and automated calibration ensure safer operations and reduced equipment downtime.
JY4315-CH Configuration Parameter Table
This table details the core technical specifications of the JY4315-CH standard model, providing a clear overview of its performance capabilities and physical dimensions. All listed parameters are standard, with optional features available for further customization to meet specific production needs.
| Item | Project | Parameter | Value |
|---|---|---|---|
| The Machine Stroke | |||
| X Axis Stroke (mm) | X Axis Stroke | Stroke | 4000 |
| Y Axis Stroke (mm) | Y Axis Stroke | Stroke | 3000 |
| Z Axis Stroke (mm) | Z Axis Stroke | Stroke | 1500 |
| A Axis Stroke (°) | A Axis Stroke | Stroke | 0–90 |
| C Axis Stroke (°) | C Axis Stroke | Stroke | ±365 |
| Fast Running Speed (m/min) | Fast Running Speed | Speed | 20 |
| General Configuration | |||
| Spindle Power (kW) | Spindle Power | Power | 25 |
| Spindle Speed (rpm) | Spindle Speed | Speed | 0–8000 |
| Saw Blade Diameter (mm) | Saw Blade Diameter | Diameter | 300–700 |
| Platform Size (mm) | Platform Size | Dimension | 3400 × 2000 |
| Flip Angle (°) | Flip Angle | Angle | 0–85 |
| Total Power (kW) | Total Power | Power | ≈36 |
| Total Weight (kg) | Total Weight | Weight | ≈13000 |
| Equipment Dimensions (mm) | Equipment Dimensions | Size | 6500 × 4000 × 4800 |
| Functional Configuration | |||
| Camera Function | Camera System | Availability | Optional |
| Knife Measuring Function | Knife Function | Availability | Optional |
| Thickness Measuring Function | Thickness Function | Availability | Optional |
| Chuck Function | Chuck Function | Availability | Optional |
| Cutter Function | Cutter System | Availability | Included |
Note: The configuration functions in this table are standard configurations.If the parameters in this table are not specified,you need to customize them.
Sizes
Machine Size & Configuration Options
The JY4315-CH provides flexible size configurations to match diverse production layouts. Users can select platform dimensions, blade diameter ranges, and stroke variations according to factory space, slab specifications, and machining workflow requirements.
QZGEE Engineering Strength & Competitive Advantages
Our commitment to excellence extends beyond the machine itself, encompassing every aspect of our service to deliver a superior overall value and experience.
Machine Reliability
We employ robust materials and rigorous testing protocols to ensure every JY4315-CH delivers consistent performance and withstands the demands of a high-volume stone workshop, minimizing unplanned downtime and ensuring a rapid return on your investment.
Technical Support
Our customers benefit from direct communication with our engineering and support teams, ensuring you receive expert advice and swift, effective solutions for both operational and technical challenges throughout the machine's lifecycle.
Safety Compliance
Our machines are designed and documented from the ground up to adhere to international safety standards, simplifying the compliance process for our clients in markets worldwide and ensuring a safe working environment.
Flexible Customization
We understand that every shop is unique, which is why we offer flexible configuration options and OEM services to tailor the equipment to your specific workflow and product mix, both at purchase and for future upgrades.
Global Logistics
We have established a streamlined supply chain and reliable shipping processes to ensure your machine arrives on time and is supported by responsive service to minimize any potential disruptions to your production schedule.
Operator Training
We provide hands-on operational and maintenance training to empower your team, ensuring you achieve optimal productivity and return on investment from the first day of operation and throughout the machine's service life.
QZGEET – Your Trusted Stone Processing Partner
Your Success is Our Benchmark
QZGEE has become a preferred technology partner for stone processing companies seeking efficiency, precision, and operational stability. The JY4315-CH supports architectural contractors, sculpture studios, villa engineering teams, and garden stone suppliers with advanced cutting performance.
Our engineering support, equipment reliability, and solution-driven service model ensure clients achieve long-term productivity gains. With optimized workflows, intelligent machining functions, and customizable configurations, QZGEE enables manufacturers to reach new levels of capability in modern stone fabrication.
The QZGEE Manufacturing Hub
Precision Engineering Powered by Modern Production Facilities
At the QZGEE facility, the JY4315-CH is brought to life through a meticulously controlled manufacturing process. We oversee every stage, from the machining of the massive steel bridge and base to the precise calibration of the spindle and linear motion systems, ensuring uncompromising quality.
Each machine is subjected to a final validation process that includes running production-equivalent cycles to verify accuracy, speed, and functionality. This commitment to pre-delivery testing guarantees that the JY4315-CH you receive is a fully vetted, production-ready asset, poised to immediately contribute to your output.
FAQ – QZGEE JY4315-CH Cutting Machine
The primary advantage is its ability to machine complex shapes and contours in a single setup, dramatically reducing production time and handling while enabling the creation of geometries impossible on 3-axis machines.
It is designed to efficiently process a wide array of stone materials, including hard granites, marbles, quartzites, and engineered stones, leveraging its powerful spindle and rigid structure.
Yes, the five-axis linkage enables 3D engraving and complex free-form machining.
We provide comprehensive on-site training covering machine operation, basic maintenance, and CNC programming to ensure your team is fully equipped.
The machine is built for high precision, capable of maintaining positioning accuracy within tight tolerances suitable for premium stone fabrication.
Remote diagnostics and installation guidance are provided.
Architectural stone plants, sculpture workshops, garden engineering, and villa decoration.
